« Reply #15 on: May 18, 2020, 01:50:17 PM »

Greg,

Nice pick! I've never broken down a 300 or 500 series reel, so let us know how close it comes to the info in this tutorial.



Tommy, Sorry I have been so long getting back to this.
It looks like the plastic clicker is also the only drag washer?  I have not been able to remove the spool shaft, which means I can't remove the main gear.
Any suggestions very welcome.
Greg







Logged

DAM Quick 3001      SHIMANO Triton Mark 3S    Jigging Master PE5n
foakes
Moderator
Member
****
Online Online

Posts: 6973


Sierra National Forest


« Reply #16 on: May 18, 2020, 02:01:25 PM »

Hi Greg --

Not trying to butt in -- and Tom will know for sure...however, there is a little metal "horseshoe shaped" retainer that can be removed with a small screwdriver, needlenose, or tweezers.

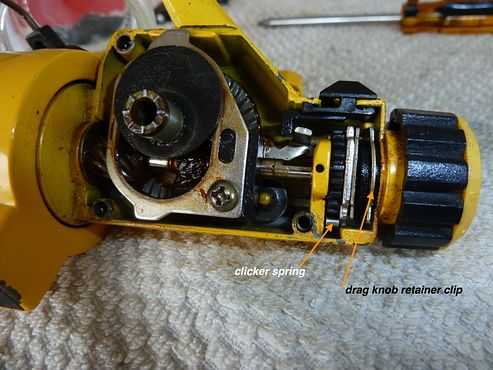

It is shown in your photo tucked into the carriage slide.

The spool shaft should come right out when this is removed.

Best, Fred


* 7419EADD-C0E6-4E5D-8A08-46EB4EB973BB.jpeg (1940.32 KB, 2048x1536 - viewed 59 times.)
« Last Edit: May 18, 2020, 02:02:10 PM by foakes » Logged

The Official, Un-Authorized Service and Restoration Center for quality vintage spinning reels.

D-A-M Quick, Penn, Mitchell, and ABU/Zebco Cardinals

---------

Self-worth is how you value yourself. It’s not based on what others think of you or the things you have (or haven’t) accomplished—it comes from within. But it’s easy to forget that our worth isn’t determined by outside forces -- each of us sets our own price.
basto
Member
*
Offline Offline

Posts: 1151



« Reply #17 on: May 18, 2020, 02:49:35 PM »

Thanks a million Fred. I will give it a go.
Greg
Logged

DAM Quick 3001      SHIMANO Triton Mark 3S    Jigging Master PE5n
basto
Member
*
Offline Offline

Posts: 1151



« Reply #18 on: May 18, 2020, 05:41:41 PM »

I will let the pictures describe the rest of the reels build. The rotor to body attachment is a surprise.
Greg

Logged

DAM Quick 3001      SHIMANO Triton Mark 3S    Jigging Master PE5n
Midway Tommy
Tom
Sensei
Member
***
Offline Offline

Posts: 1986


Smack dab in the middle of USA - Eastern Nebraska


« Reply #19 on: May 18, 2020, 07:29:43 PM »

Well advised, Fred. I've never been inside a 500 or 300 series, or really any Cardinal post the 600 & 700 series'. I had heard, though, that the 500 series was cheapened quite a bit. Looks like AG just continued cutting corners.  Sad
Logged

Love those open face spinning reels! (Especially ABU & ABU/Zebco Cardinals)

Tommy D (ORCA), NE



Favorite Activity? ............... In our boat fishing
RELAXING w/ MY BEST FRIEND (My wife Bonnie)
pinoy101
Member
*
Offline Offline

Posts: 54


« Reply #20 on: July 01, 2020, 09:32:00 PM »

hello Gents...

Look what I found this side of the ocean..... Grin


alan S.

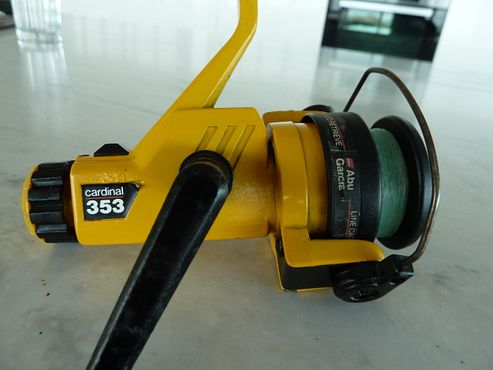

* IMG_20200702_132014.jpg (2670.12 KB, 3456x4608 - viewed 35 times.)

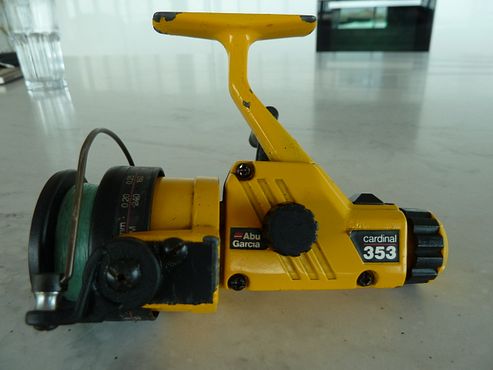

* IMG_20200702_131948.jpg (2516.2 KB, 3456x4608 - viewed 30 times.)
