Author Topic: The continual and ongoing saga of the yellow caps  (Read 3107 times)
0 Members and 2 Guests are viewing this topic.
mrbrklyn
Member
*
Online Online

Posts: 834


GNU/Linux User


WWW
« Reply #15 on: September 09, 2018, 01:21:49 AM »

The nut that holds the roller end of the bail wire on 704, 710, & 712 has this type of locker.
Lochtite 222 does the same with the fact that it’s added after assembly.

you lost me here..
Logged

Rivverrat
Member
*
Online Online

Posts: 2220



« Reply #16 on: September 09, 2018, 03:07:39 PM »



you lost me here..

 Me to.

Ive worked on a number of these reels & have no clue whats being talked about here. Never noticed a nylok insert of any kind in the adjustment cap.

After explaining your issue to Penn & sending them your reels it's possible but highly unlikely they would have missed this if it was missing.

There is an O ring that seals & creates tension for the adjustment cap. I have marked this O ring using the limits of my artistic abilities, with yellow arrows.
Another pic shows how the cap should look.  The rubber O ring must be seated in its groove to work right.

I believe  there may be an issue with the O ring..... Its out of proper dimensions , O ring is not seated right, cap is making good contact with it. Is it missing ?  ... Jeff


* 20180909_182820.jpg (2442.98 KB, 4032x2268 - viewed 91 times.)

* 20180909_182159.jpg (708.09 KB, 1530x1055 - viewed 92 times.)

* 20180909_182119.jpg (1559.36 KB, 2322x1625 - viewed 105 times.)
« Last Edit: September 10, 2018, 05:13:52 AM by Rivverrat » Logged
bhale1
Photo Group
Member
**
Online Online

Posts: 641



« Reply #17 on: September 11, 2018, 07:02:53 PM »

Mr. Brklyn.. .... I dont own this particular reel, and, Im pretty much a novice here, so please bare with me. Today, as I was watching the news, I was absentmindedly playing with a reel....C'mon I know you all do it Smiley.......anyways, I started messing with the spool adjustment cap on this reel{Daiwa SL20sh}, and flicking freespool. I definitely noticed a point where the cap would lose contact with the o-ring if I backed it off too far. And at that point it would be too loose to fish with.
Turn it back in and i can feel it catch, and engage. So, I was just wondering if maybe the "yellow cap" on your reel is not engaging the O-ring when you turn it in to get the freespool your looking for? And, if so, what would cause that? Maybe something internally shifting the spool to the side, so as not allowing the o-ring to catch properly.....Just got me to thinking, thats all. Either that, or the o-ring has shrunk and needs replacement...IDK Huh?........
Brett
Logged
mrbrklyn
Member
*
Online Online

Posts: 834


GNU/Linux User


WWW
« Reply #18 on: September 11, 2018, 08:16:08 PM »

Penn sent me a new cap and about four other very small parts, a click washer, friction washer, rubber washer, click spring and another clickwasher.

The rubber washer and friction washers are less than a  2 milimeters in size... very small.  This is going to take a magnifying glass and tweezers to work with

http://s7d5.scene7.com/is/content/purefishing/407-TRQ12G

No O ring though Sad
Logged

mrbrklyn
Member
*
Online Online

Posts: 834


GNU/Linux User


WWW
« Reply #19 on: September 11, 2018, 08:22:18 PM »

Logged

Fish-aholic
Photo Group
Member
**
Offline Offline

Posts: 314


« Reply #20 on: February 05, 2019, 02:24:37 PM »

I've worked on quite a few fathom 12/15's and also noticed shrinking O-rings leaving spool tension caps having less bite.

My fix was to cut and wrap a thin strip of masking tape around the post where it countersinks to accommodate the O-ring. Reseat O-ring over tape, replace cap and the bite will return upon adjustment.  Wink

HTH, Steve
Logged
joel8080
Firearms Group
Member
**
Online Online

Posts: 364


« Reply #21 on: February 07, 2019, 01:01:57 PM »

Does anyone have an O ring that has not been used ?, so we can get a good measurement to see if there is one out there a little bit thicker/wider.
The cap on my TRQ 12 is loose for a while now.

joel8080
Logged

Oceanside,California
Dominick
Administrator
Member
*****
Offline Offline

Posts: 7603


San Mateo, California


« Reply #22 on: February 07, 2019, 01:08:36 PM »

Does anyone have an O ring that has not been used ?, so we can get a good measurement to see if there is one out there a little bit thicker/wider.
The cap on my TRQ 12 is loose for a while now.

joel8080

Take the O ring to your local hardware store.  I bet you could match it up.  Dominick
Logged

Leave the gun.  Take the cannolis.

 Give a man a fish and he will eat for a day. Teach a man to fish and he will sit in a boat all day drinking beer.
joel8080
Firearms Group
Member
**
Online Online

Posts: 364


« Reply #23 on: February 07, 2019, 01:28:10 PM »

I thought about that then I checked and McMaster Carr has so many types of O rings and sizes thickness and strength the local hardware store has a very limited selection, I was there this morning.

joel8080
Logged

Oceanside,California
Fish-aholic
Photo Group
Member
**
Offline Offline

Posts: 314


« Reply #24 on: February 10, 2019, 05:54:39 AM »

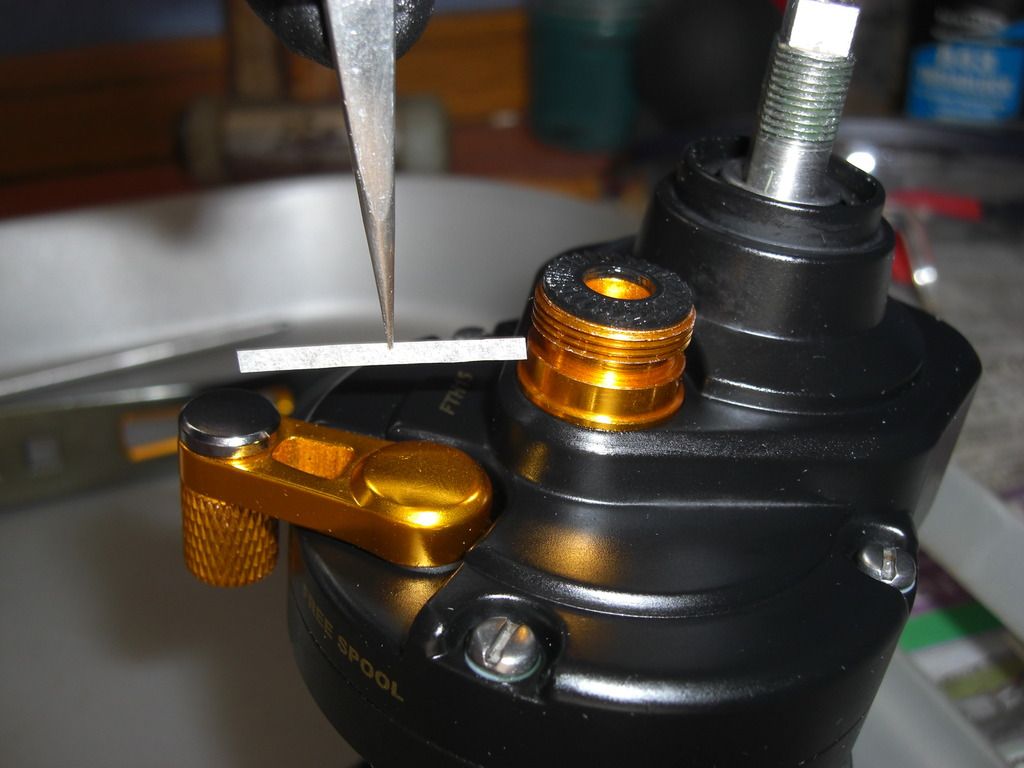

I've worked on quite a few fathom 12/15's and also noticed shrinking O-rings leaving spool tension caps having less bite.

My fix was to cut and wrap a thin strip of masking tape around the post where it countersinks to accommodate the O-ring. Reseat O-ring over tape, replace cap and the bite will return upon adjustment.  Wink

HTH, Steve





 Wink
Logged
Bryan Young
Ultimate Upgrades Drags
Administrator
Member
*****
Online Online

Posts: 10188


The Reel Whisperer


« Reply #25 on: February 10, 2019, 08:35:51 AM »

I would try some Teflon tape on the threads.
Logged

Cheesy I talk with every part I send out and each reel I repair so that they perform at the top of their game. Cheesy
Gfish
Gfish
Member
*
Online Online

Posts: 2042


What? Me worry?


« Reply #26 on: February 10, 2019, 11:50:05 AM »

McMaster-Carr has some varities of o-rings that are supposed to last longer than the standard material(neopreme?). Viton, for example. Also, somethin to lube the o-ring that's not petroleum based---?, i.e. that won't break down rubber.
« Last Edit: February 10, 2019, 11:53:12 AM by Gfish » Logged

Fishing tackle is an art form and all fish caught on the right tackle are"Gfish"!
mikeysm
Member
*
Online Online

Posts: 1020


« Reply #27 on: February 10, 2019, 04:54:39 PM »

Harbor Freight has orings. Remember that oring you have is metric.

Mike
Logged
mrbrklyn
Member
*
Online Online

Posts: 834


GNU/Linux User


WWW
« Reply #28 on: July 13, 2019, 01:10:27 PM »

anyone find an o-ring to match this problem - with a maker and mnu number or parts number?
Logged

mrbrklyn
Member
*
Online Online

Posts: 834


GNU/Linux User


WWW
« Reply #29 on: July 13, 2019, 01:17:19 PM »



you lost me here..

 Me to.

Ive worked on a number of these reels & have no clue whats being talked about here. Never noticed a nylok insert of any kind in the adjustment cap.

After explaining your issue to Penn & sending them your reels it's possible but highly unlikely they would have missed this if it was missing.

There is an O ring that seals & creates tension for the adjustment cap. I have marked this O ring using the limits of my artistic abilities, with yellow arrows.
Another pic shows how the cap should look.  The rubber O ring must be seated in its groove to work right.

I believe  there may be an issue with the O ring..... Its out of proper dimensions , O ring is not seated right, cap is making good contact with it. Is it missing ?  ... Jeff

I want to thank you for taking the time to write this up with the Photography etc.  FWIW, this is a problem not just for the Torque, but the whole line, fathoms, and squals.  I'm not sure how the o-ring creates the tension, but I think I can see how the ring essentially allows the cap to snap onto the post correctly and prevent it from falling off.  I can also see how over time this is inevitably fail with use, and that would explain why this happens so frequently with so many reels.  I own about 8 Penn reels of this basic design.  The solution would seem to be a better quality o-ring, but even that will eventually fail.  The rings look like they need to be periodically replaced as part of yearly maintenmence.
Logged
