« on: May 05, 2020, 01:26:33 AM »

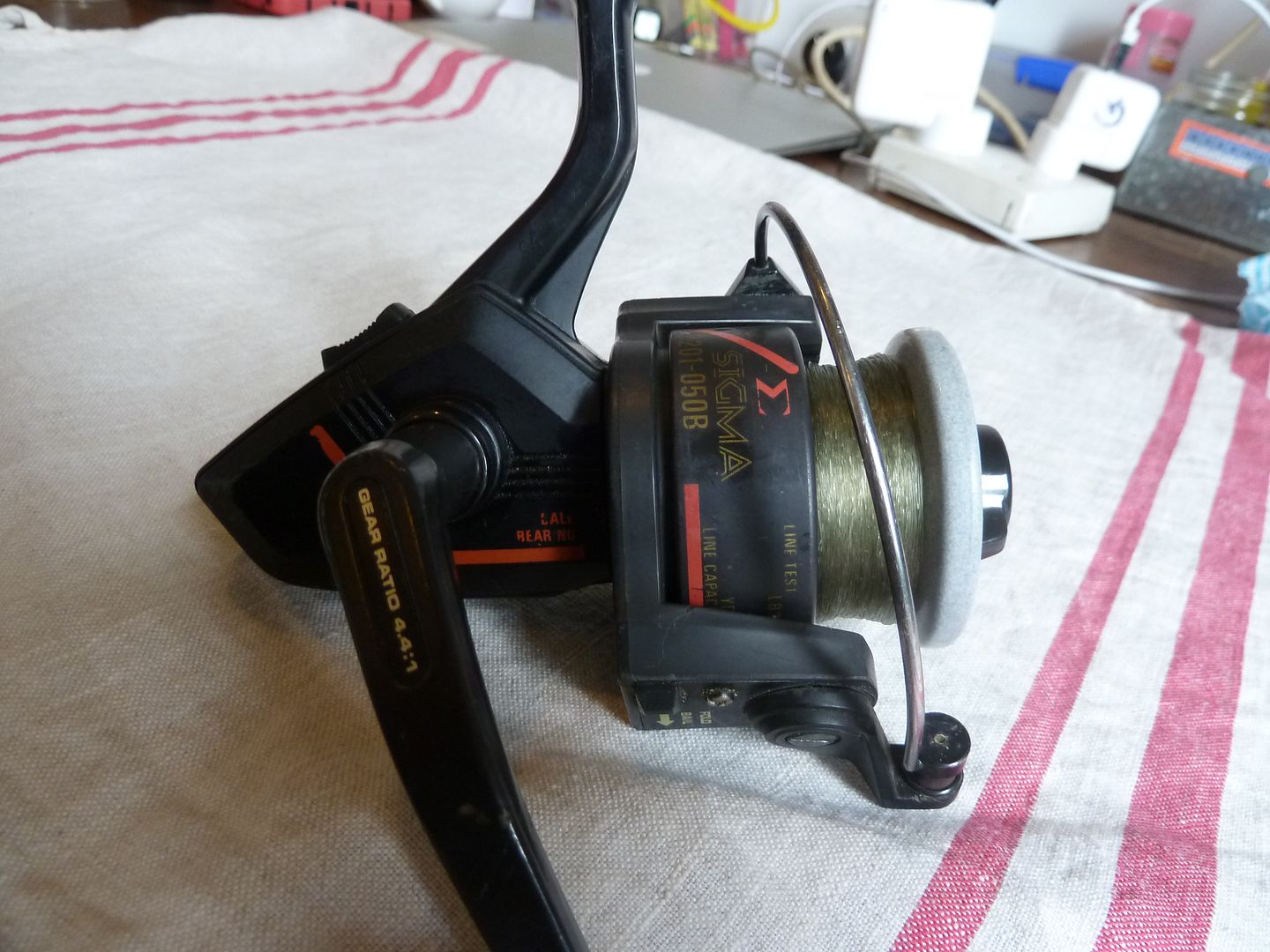

I thought this reel had a metal body until I got it home and pulled the side plate screws to find they are self tappers.

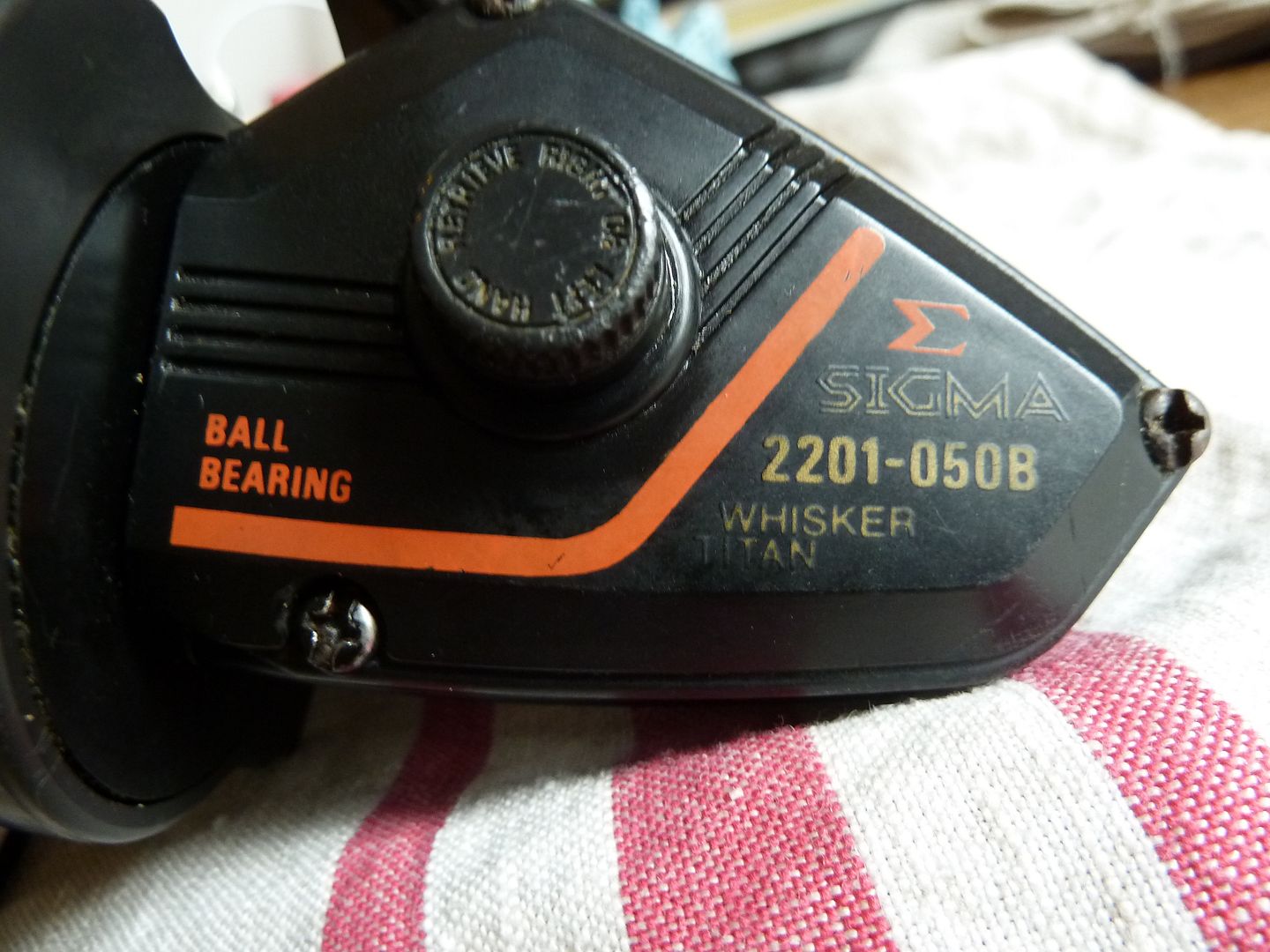

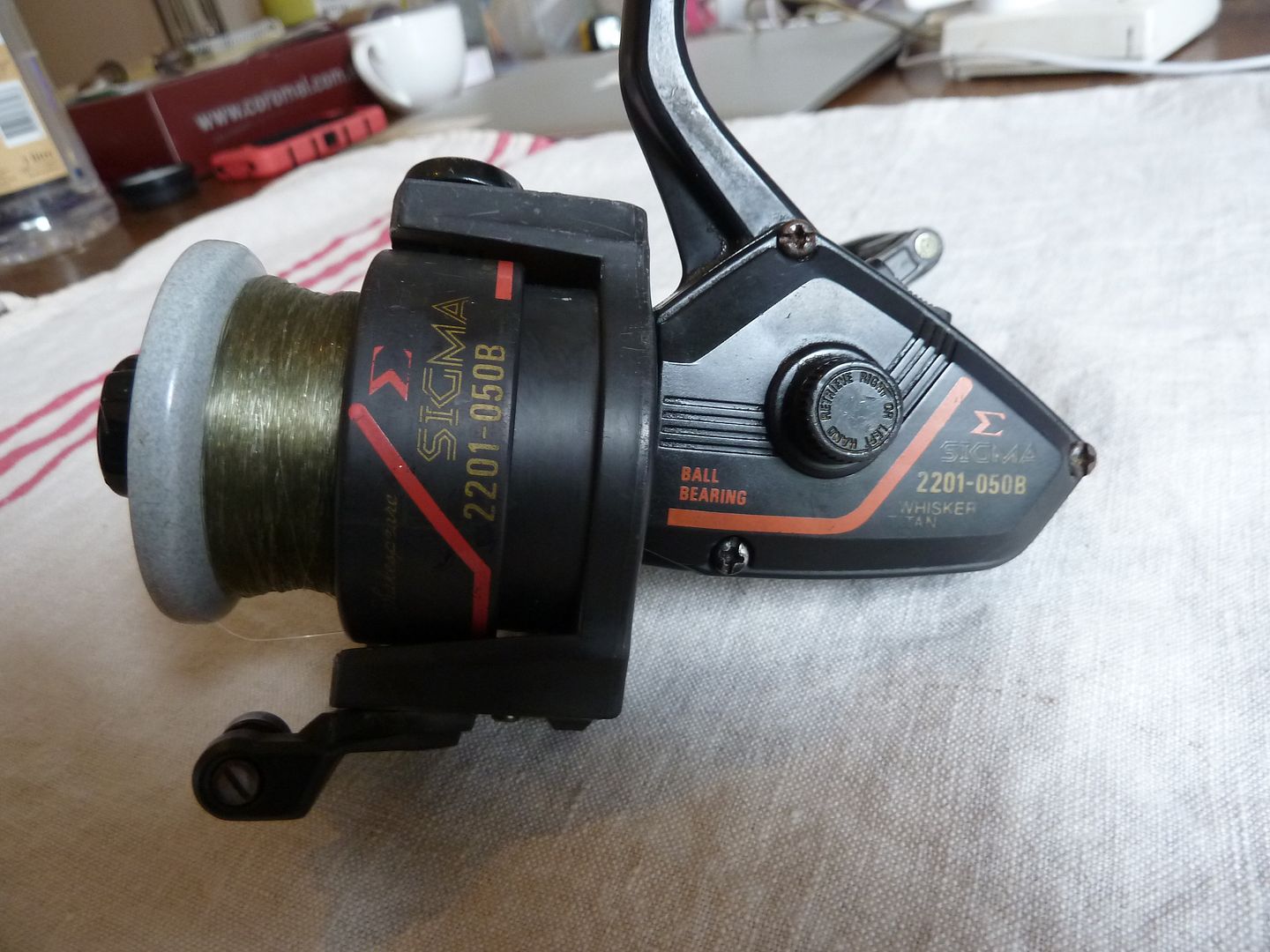

It is the Shakespeare 2201-050B Whisker Titan.The body, rotor and spool are all graphite.

[/URL]

« Last Edit: May 11, 2020, 12:46:07 PM by basto » Logged

DAM Quick 3001      SHIMANO Triton Mark 3S    Jigging Master PE5n
basto
Member
*
Online Online

Posts: 1150



« Reply #1 on: May 05, 2020, 01:35:56 AM »

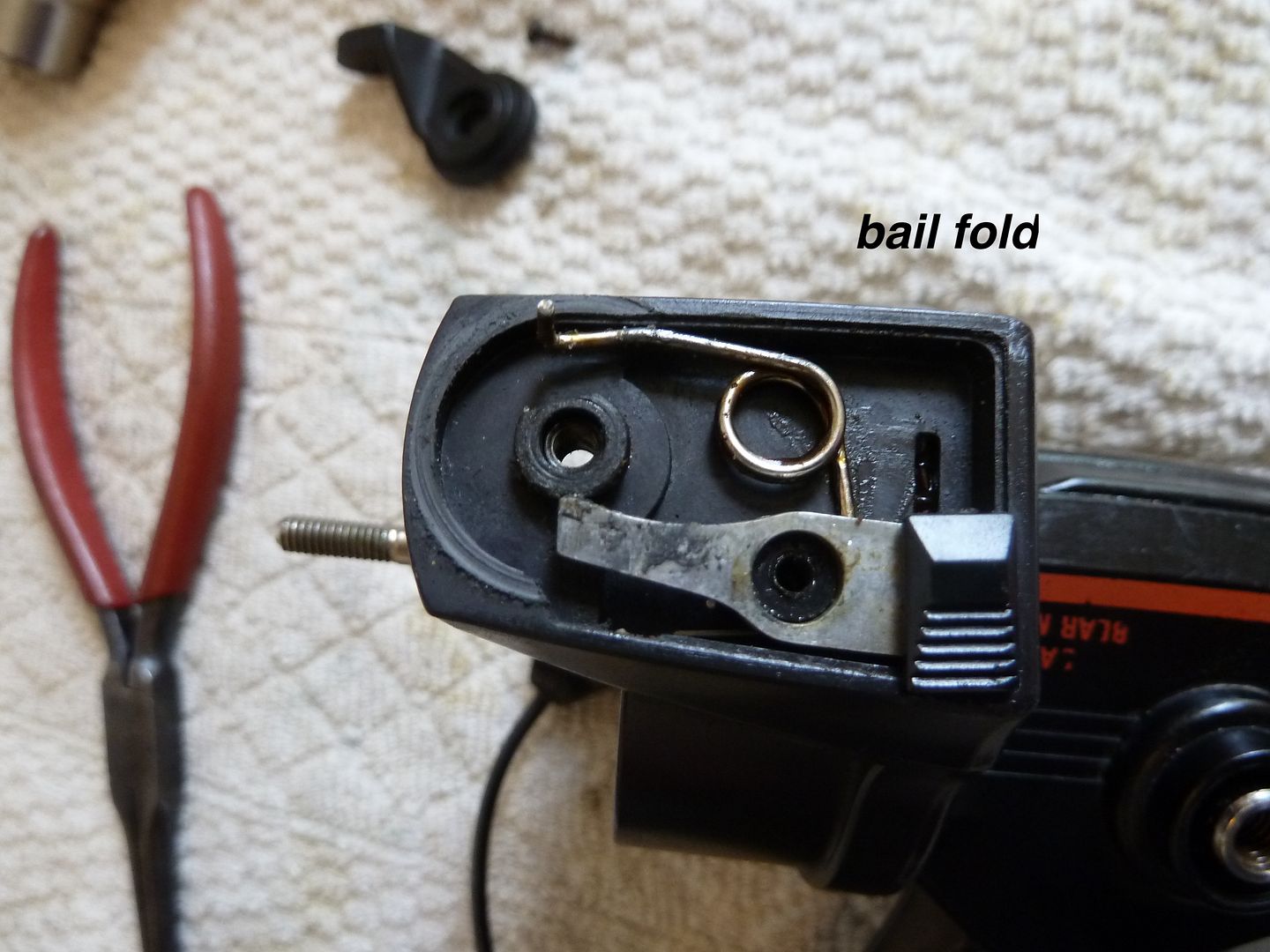

It has a bail fold feature that I assume is to preserve the strength in the bail spring when the reel is not in use., and for storage.





The spool is graphite with a scale for line capacity and a ceramic lip.
« Last Edit: June 15, 2020, 01:48:35 PM by basto » Logged

DAM Quick 3001      SHIMANO Triton Mark 3S    Jigging Master PE5n
basto
Member
*
Online Online

Posts: 1150



« Reply #2 on: May 05, 2020, 01:47:31 AM »

The drag is oiled felt with hard fibre washers under spool.

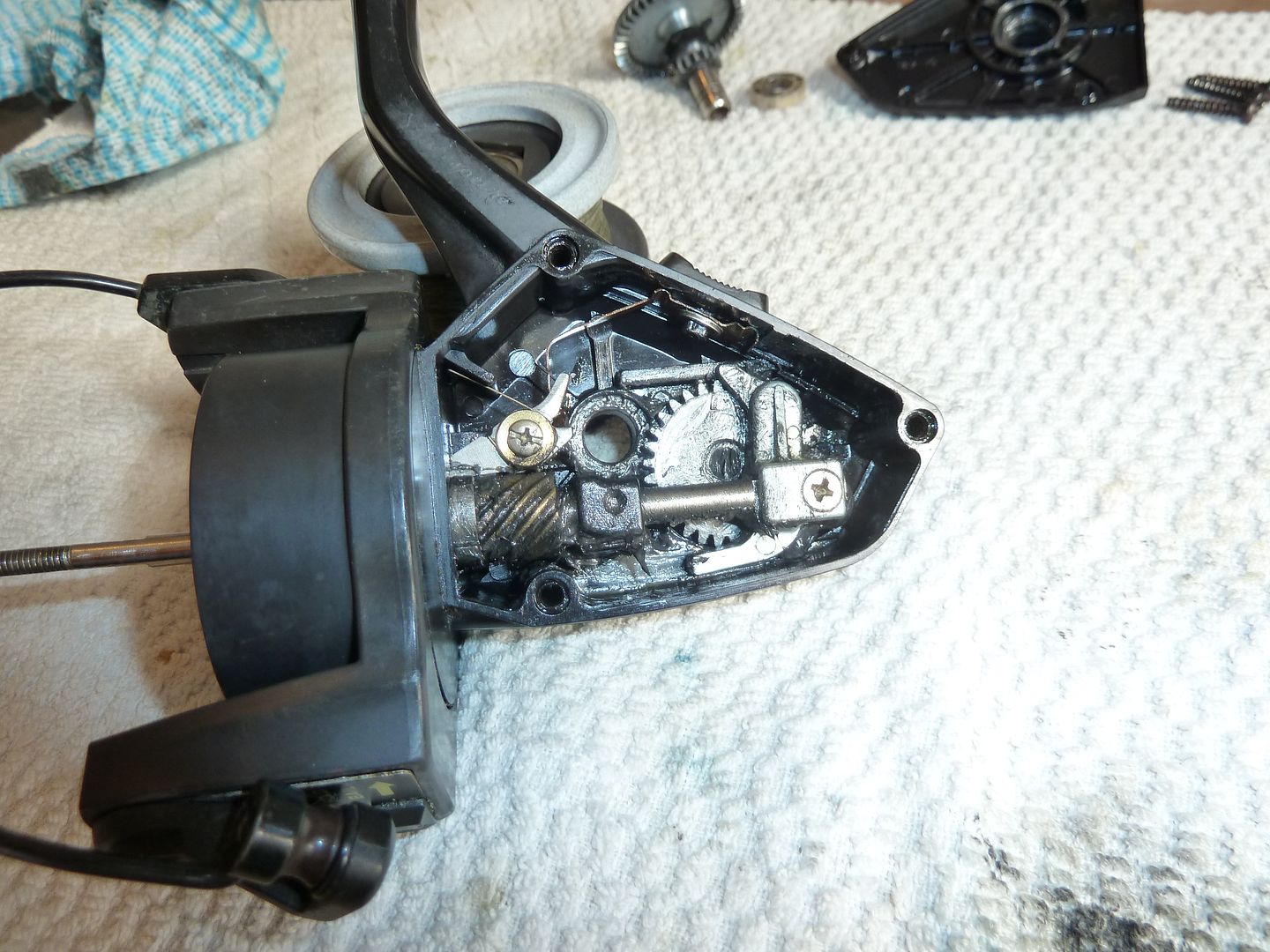

The alloy main gear has a plastic anti reverse silencer on its shaft.



The occillation system is an alloy gear driven by the main gear shaft.
Logged

DAM Quick 3001      SHIMANO Triton Mark 3S    Jigging Master PE5n
basto
Member
*
Online Online

Posts: 1150



« Reply #3 on: May 05, 2020, 01:56:26 AM »

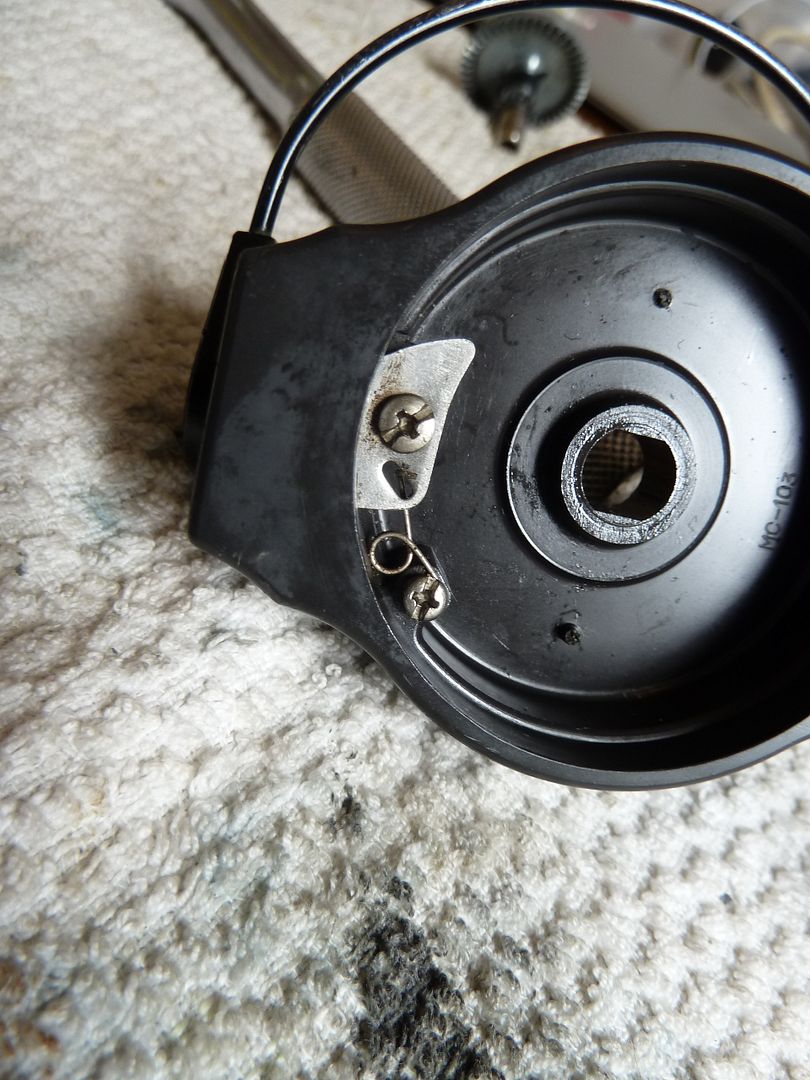

Internal bail trip.

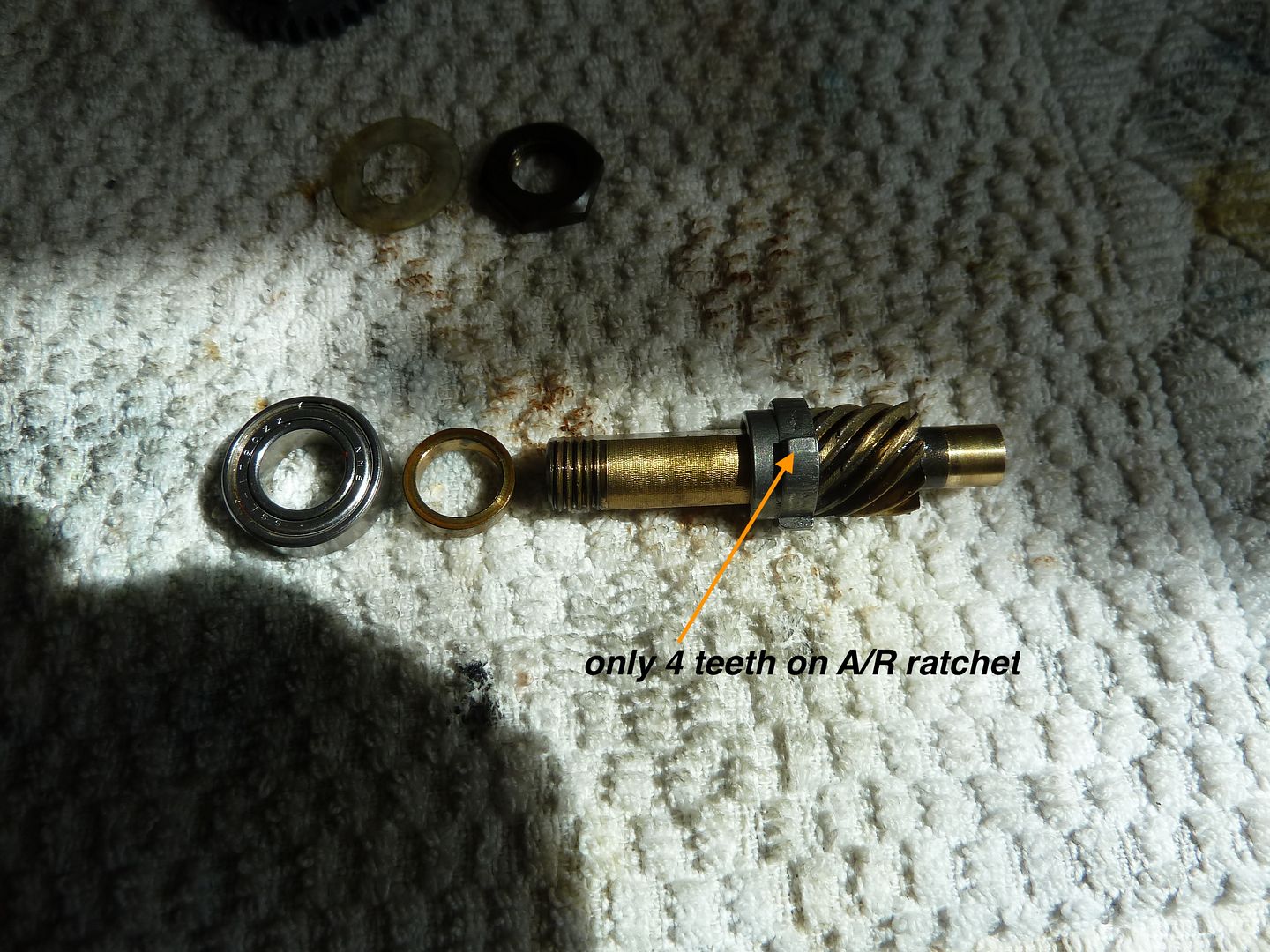

The anti reverse ratchet has only 4 teeth.


One advantage of a non metal body is that there are no metal parts like bearings that can get frozen with rust to the body.
I quite like this reel. It is very smooth to operate and was kept clean.

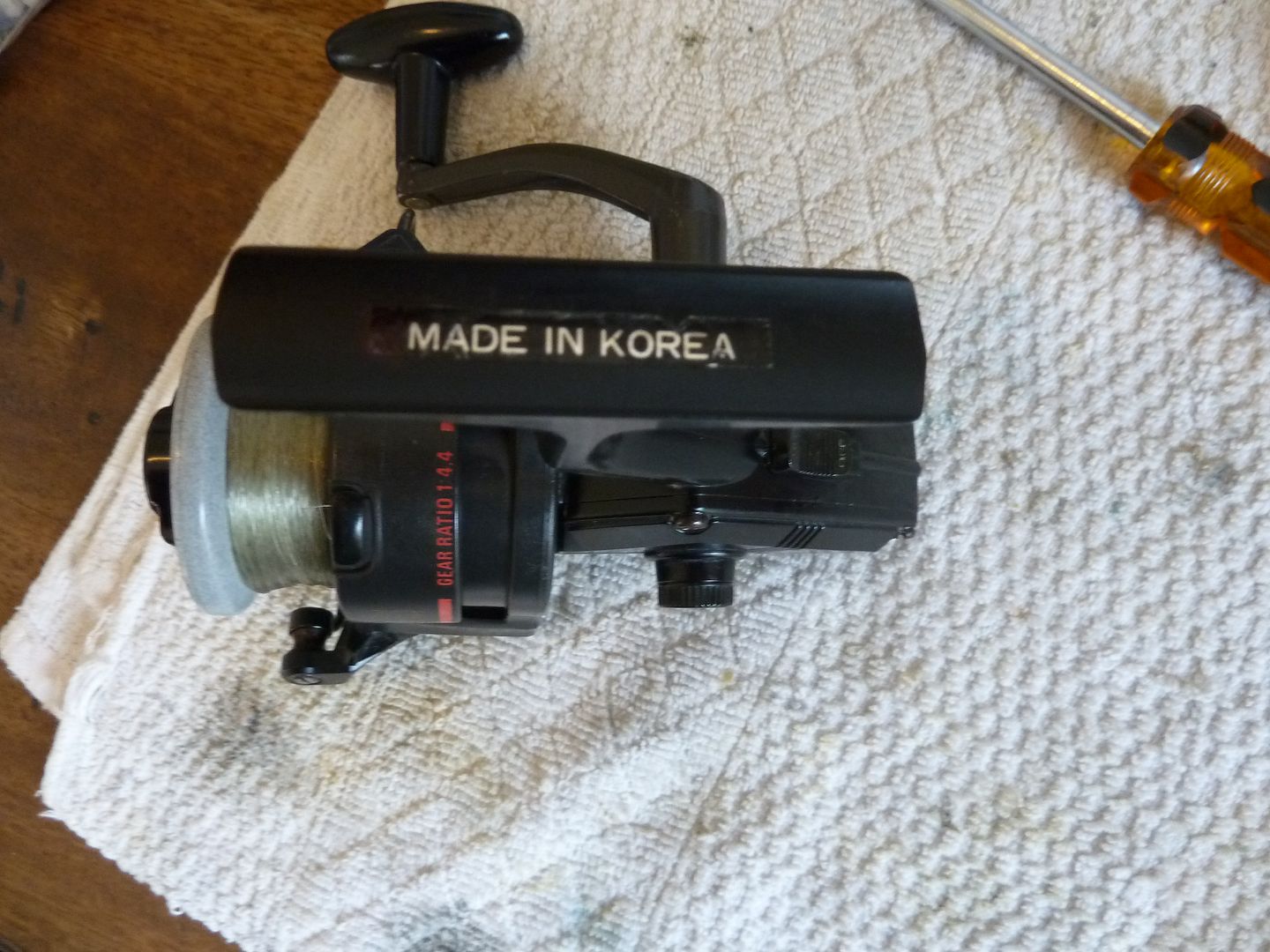

I would love to know what year it was produced in Korea.

Greg
Logged

DAM Quick 3001      SHIMANO Triton Mark 3S    Jigging Master PE5n
Crow
Member
*
Online Online

Posts: 1996


Dauphin Island Sunset


« Reply #4 on: May 05, 2020, 03:47:35 AM »

Thanks for the look inside !
Logged

There's nothing wrong with a few "F's" on your record....Food, Fun, Flowers, Fishing, Friends, and Fun....to name just a few !
philaroman
Member
*
Offline Offline

Posts: 1373


« Reply #5 on: May 05, 2020, 04:46:25 AM »

as I recall...

had & sold the older Japanese Sigma version (also, graphite) -- the oldest all-metal ones are fairly collectible
(that's what I mistakenly thought I sniped -- hence, STUPIDLY resold)…  AFTER that,
pretty sure I figured out (and forgot) how to distinguish between metal & graphite, by model# alone
it wasn't rocket science: 2200 vs. 2201...  2200 with "G" somewhere in model#...  something like that
if you look on fleaBay SOLD, it should be obvious: metal Japanese are worth 3X as much
(don't pay that, LOL -- just use it to figure out correct model#s & distinguishing visible characteristics)

the affordable graphite smaller ones seem most practical for use -- frame flex is of least concern &
the fold-down bail feature is esp. cool for a pocket/backpack reel
please show the reel "most compact" --  you know, spool downmost & bail+handle folded
is that a ceramic roller?  thks
« Last Edit: May 05, 2020, 05:09:14 AM by philaroman » Logged
basto
Member
*
Online Online

Posts: 1150



« Reply #6 on: May 05, 2020, 08:33:30 AM »

Thanks for the look inside !

Crow, you are very welcome.
Greg
Logged

DAM Quick 3001      SHIMANO Triton Mark 3S    Jigging Master PE5n
basto
Member
*
Online Online

Posts: 1150



« Reply #7 on: May 05, 2020, 09:07:18 AM »

as I recall...

had & sold the older Japanese Sigma version (also, graphite) -- the oldest all-metal ones are fairly collectible
(that's what I mistakenly thought I sniped -- hence, STUPIDLY resold)…  AFTER that,
pretty sure I figured out (and forgot) how to distinguish between metal & graphite, by model# alone
it wasn't rocket science: 2200 vs. 2201...  2200 with "G" somewhere in model#...  something like that
if you look on fleaBay SOLD, it should be obvious: metal Japanese are worth 3X as much
(don't pay that, LOL -- just use it to figure out correct model#s & distinguishing visible characteristics)

the affordable graphite smaller ones seem most practical for use -- frame flex is of least concern &
the fold-down bail feature is esp. cool for a pocket/backpack reel

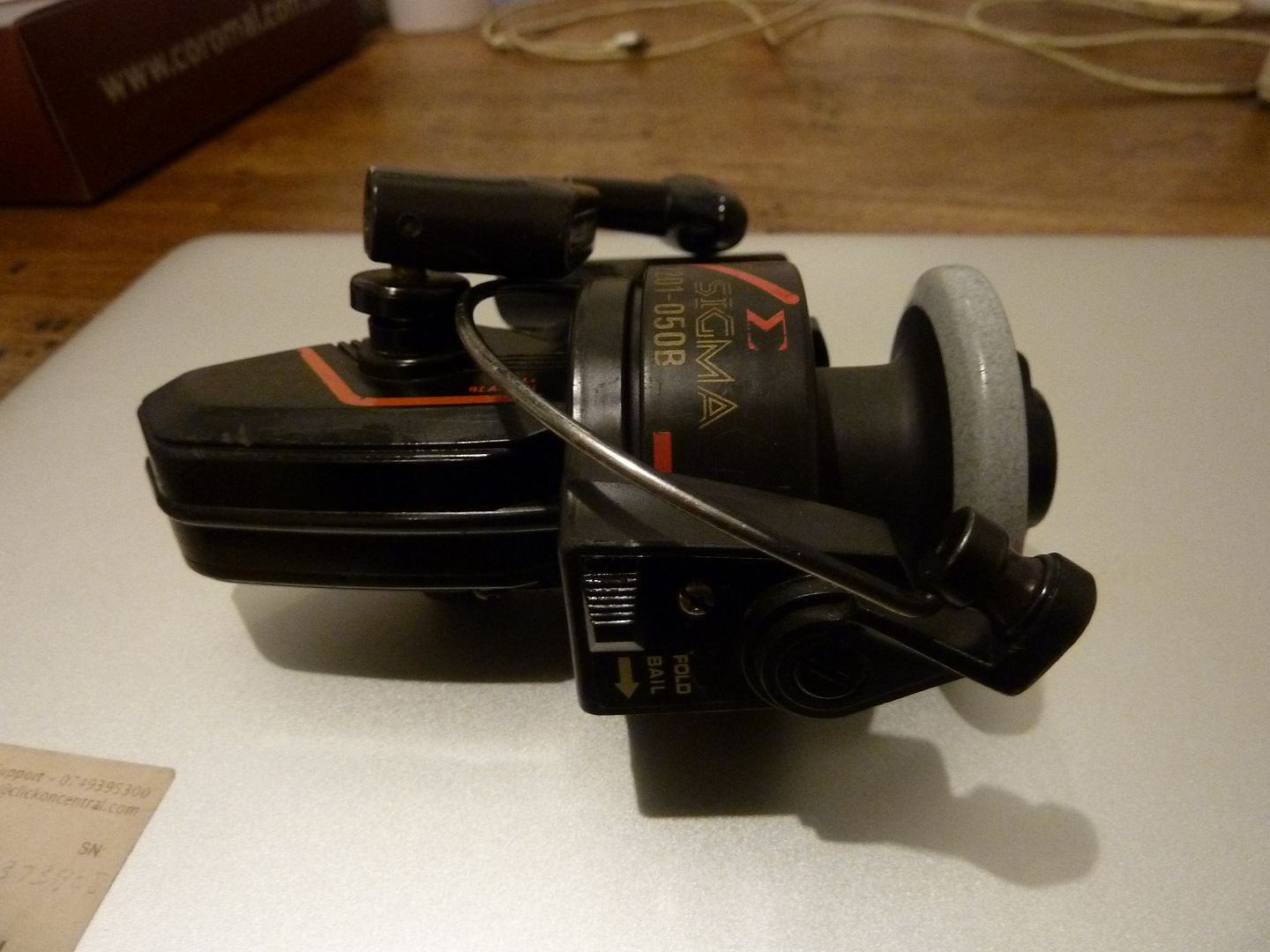

please show the reel "most compact" --  you know, spool downmost & bail+handle folded
is that a ceramic roller?  thks




I think the roller is ceramic. Here is a few more pics.





cheers
Greg
« Last Edit: May 05, 2020, 07:51:46 PM by basto » Logged

DAM Quick 3001      SHIMANO Triton Mark 3S    Jigging Master PE5n
Sharkb8
Member
*
Online Online

Posts: 220


« Reply #8 on: May 05, 2020, 05:22:06 PM »

I use to use them when they first came out in about 1985 they're made in Japan, I think around 1987 they're  made in Korea  . The graphite one seemed to were out quick so I went back to the metal body ones.

Kim
