Author Topic: Penn 720  (Read 748 times)
0 Members and 1 Guest are viewing this topic.
Scattergun2570
Member
*
Offline Offline

Posts: 395


« on: April 01, 2021, 11:31:54 PM »

A friend of mine gave me it to try and figure what’s up with it. It was making noise at different parts of the oscillation cycle..kinda rumbly .. interesting part of it is when I turned the reel parallel with the floor, the noise and rumble was greatly decreased. I then disassembled it,looking for anything obvious,but the gears appear to be in good shape...no chips or busted teeth. The one thing that I did find was what I assume was a shim in the area of the pinion bearing..it was mangled...here’s a pic of the shim... just wondering if anyone has any ideas on what the noisy rumble may be. Thanks

PS... the shim does not seem to be in the schematic.


* E5371BE3-E015-4009-AA41-BDE478164C87.png (5150.76 KB, 2048x1536 - viewed 50 times.)
« Last Edit: April 01, 2021, 11:34:38 PM by Scattergun2570 » Logged
Wompus Cat
ENTREMANURE DAS GROSEN
Photo Group
Member
**
Offline Offline

Posts: 489


REEL WHISPERER


WWW
« Reply #1 on: April 02, 2021, 12:06:56 AM »

Looks like part of the Bearing and Bearing could also be the Noise.!

The cage that holds the lil Balls in place



* Clipboard03 rs.jpg (22.98 KB, 352x375 - viewed 111 times.)
« Last Edit: April 02, 2021, 03:15:19 AM by Wompus Cat » Logged

EVERYTHING TO EXCESS !
MODERATION IS FOR MONKS
Scattergun2570
Member
*
Offline Offline

Posts: 395


« Reply #2 on: April 02, 2021, 02:50:07 AM »

Looks like part of the Bearing and Bearing could also be the Noise.!

The cage that holds the lil Balls in place



I spun the bearing on my tweezers like I do on every other bearing,,no noise at all coming from it..as far as the shim,it’s a totally different color than the bearing,and it’s size does not match any part of the bearing.
Logged
Wompus Cat
ENTREMANURE DAS GROSEN
Photo Group
Member
**
Offline Offline

Posts: 489


REEL WHISPERER


WWW
« Reply #3 on: April 02, 2021, 03:23:22 AM »

Now that I looked at that piece of shim ?
It may be someones attempt to makeshift a  shim of sorts out of aluminum foil or thin brass, Gum  wrapper or something to take out slack in the housing somewhere and as far as the bearing not making noise spinning on your Twezer ,sometimes under a load they will make noise and not just free spinning .
Look carefully for something rubbing along the housing when spinning the reel and or slack in the shaft endplay ?
Logged

EVERYTHING TO EXCESS !
MODERATION IS FOR MONKS
Scattergun2570
Member
*
Offline Offline

Posts: 395


« Reply #4 on: April 02, 2021, 04:04:32 AM »

Now that I looked at that piece of shim ?
It may be someones attempt to makeshift a  shim of sorts out of aluminum foil or thin brass, Gum  wrapper or something to take out slack in the housing somewhere and as far as the bearing not making noise spinning on your Twezer ,sometimes under a load they will make noise and not just free spinning .
Look carefully for something rubbing along the housing when spinning the reel and or slack in the shaft endplay ?

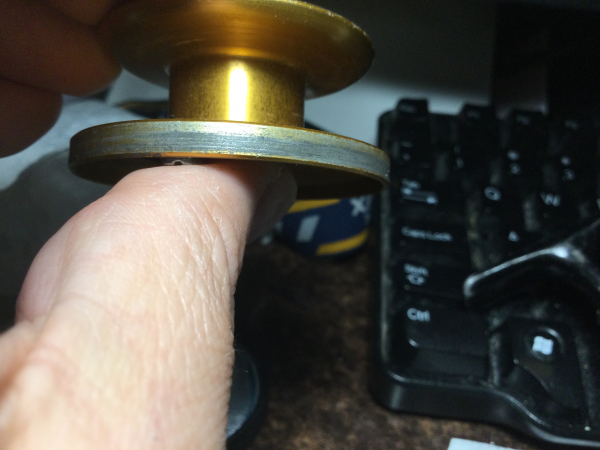

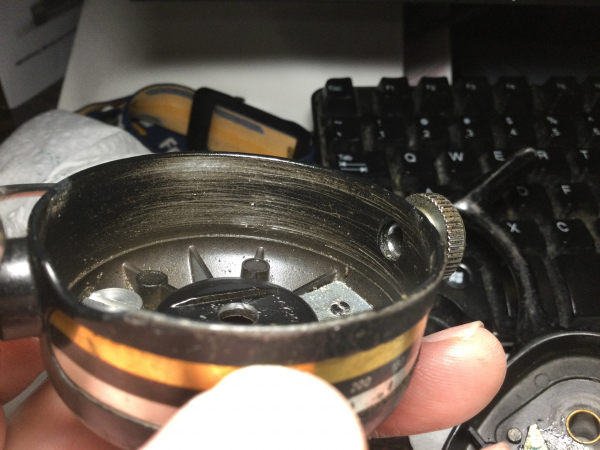

I think I may be putting the pieces together now...I noticed the bail wire was out of round,so I figured it may have been stepped on or something,,so I was looking closely at the inside of the rotor,and it’s fairly well scratched up..and the bottom of the spool as well..so I’m thinking the noisy rumbling is from contact..have a look..



* 7B9EB4E5-3C73-4C9B-902A-0477A08049E7.jpeg (2198.69 KB, 3264x2448 - viewed 49 times.)

* 771BA6CF-8B07-4A2F-B124-E87CD3A836DE.jpeg (2198.69 KB, 3264x2448 - viewed 50 times.)

* 29A9843B-D47E-4127-BC18-7A20C8627160.jpeg (1957.23 KB, 3264x2448 - viewed 49 times.)
Logged
Wompus Cat
ENTREMANURE DAS GROSEN
Photo Group
Member
**
Offline Offline

Posts: 489


REEL WHISPERER


WWW
« Reply #5 on: April 02, 2021, 11:06:30 AM »

A couple of  things come into play with this scenario .One is Too much lateral play in bearing to housing , or maybe a  Bent shaft.
Move the Spool back and forth and side to side to see if that is  allowing the spool to rub in a spot or two.
Also look closely at the distances between the spool and the housing to see if it is closer on one side or the other.
If so you Might be able to Tweak it a bit with the spool fully extended to move it away from the side.
Good you found the Rubbing .
« Last Edit: April 02, 2021, 11:10:29 AM by Wompus Cat » Logged

EVERYTHING TO EXCESS !
MODERATION IS FOR MONKS
Midway Tommy
Tom
Sensei
Member
***
Offline Offline

Posts: 2238


Right in the middle of USA - Eastern Nebraska


« Reply #6 on: April 02, 2021, 04:52:47 PM »

I see this quite often. It usually happens when someone dropped the reel and the rotor or spool got bent, i.e. out of round. I have seldom seen it happen as a result of a worn bearing or bent shaft. You can make the rotor and/or spool round again so they don't rub, if that is the cause, but be careful as the rotor can crack easily.
Logged

Love those open face spinning reels! (Especially ABU & ABU/Zebco Cardinals)

Tommy D (ORCA), NE



Favorite Activity? ............... In our boat fishing
RELAXING w/ MY BEST FRIEND (My wife Bonnie)
foakes
Moderator
Member
****
Offline Offline

Posts: 7399


Sierra National Forest


« Reply #7 on: April 02, 2021, 05:04:11 PM »

On any open-faced spinning reel — 9 times out of 10 — if there is an issue — it can generally be traced to something on the “outside” of the reel that became damaged or distorted by careless handling.

Crank handle, spool, spool shaft, bail, bail arm, rotor, etc. — basically, anything protruding that may have been tweaked.

And almost anything can be repositioned or adjusted to work properly.

Most problems can be diagnosed quickly by an examination for anything rubbing at a certain point of operation — then by removing a part or two to see if the noise or catch is gone — or still there.

Seldom do parts just “fail” on the insides of quality spinners — it almost always can be traced to a issue on the outer
part of the reel.

Best, Fred
Logged

The Official, Un-Authorized Service and Restoration Center for quality vintage spinning reels.

D-A-M Quick, Penn, Mitchell, and ABU/Zebco Cardinals

---------

I’m not scared of heights — and not scared of falling...

It’s that landing part I’m still working on!
Wompus Cat
ENTREMANURE DAS GROSEN
Photo Group
Member
**
Offline Offline

Posts: 489


REEL WHISPERER


WWW
« Reply #8 on: April 02, 2021, 05:54:41 PM »

Fred and Tommy , You guys have been lucky . Everyone  I  ever had was a bent shaft or worse.
Logged

EVERYTHING TO EXCESS !
MODERATION IS FOR MONKS
jurelometer
Sensei
Member
***
Offline Offline

Posts: 936


« Reply #9 on: April 02, 2021, 06:49:00 PM »

I had a 722 with this problem.  Turned out that that the rotor spacer (key 19a) went missing.   The 720   schematic that I looked at does  not show a rotor spacer, but does show a thrust washer (key 20a), which may have something to do with that mangled brass part that you found on the shaft.  There has to be a thrust washer or similar, so that nut that holds the rotor in place has something to push against.

If you reassemble the shaft and rotor assembly and the rotors  is not locked  solid without any wiggle on the shaft , the fix imight be as simple as replacing the thrust washer.

At any rate, it is always worthwhile to check the schematics for missing parts, and then ensure that the rotor is wiggle free.  A dented rotor seems unlikely if the wear marks go all the way around the rotor.

-J
Logged
Scattergun2570
Member
*
Offline Offline

Posts: 395


« Reply #10 on: April 03, 2021, 01:16:34 AM »

I see this quite often. It usually happens when someone dropped the reel and the rotor or spool got bent, i.e. out of round. I have seldom seen it happen as a result of a worn bearing or bent shaft. You can make the rotor and/or spool round again so they don't rub, if that is the cause, but be careful as the rotor can crack easily.


Actually I reassembled the reel and I am still getting a binding in the oscillation cycle..also, I think I made a mistake by removing the anti reverse lever,,It now seems to only work in a position the lever shouldn`t even be able to travel to. SO now I have two issues.
Logged
Scattergun2570
Member
*
Offline Offline

Posts: 395


« Reply #11 on: April 03, 2021, 01:28:56 AM »

On any open-faced spinning reel — 9 times out of 10 — if there is an issue — it can generally be traced to something on the “outside” of the reel that became damaged or distorted by careless handling.

Crank handle, spool, spool shaft, bail, bail arm, rotor, etc. — basically, anything protruding that may have been tweaked.

And almost anything can be repositioned or adjusted to work properly.

Most problems can be diagnosed quickly by an examination for anything rubbing at a certain point of operation — then by removing a part or two to see if the noise or catch is gone — or still there.

Seldom do parts just “fail” on the insides of quality spinners — it almost always can be traced to a issue on the outer
part of the reel.

Best, Fred

Actually I reassembled the reel and I am still getting a binding in the oscillation cycle without the spool in place..also, I think I made a mistake by removing the anti reverse lever,,It now seems to only work in a position the lever shouldn`t even be able to travel to. SO now I have two issues. Maybe someone can walk me through getting the anti reverse lever back in the correct position?
« Last Edit: April 03, 2021, 07:31:39 AM by Scattergun2570 » Logged
