the penn 500 jigmaster was originally designed for 30 pound mono and 5 pounds of drag.  if you crank down on the star or if the drags get sticky, you can easily double that.  once you exceed 7-8 pounds of drag and start cranking, you will round off the top of of the drive shaft that it attaches to.  this drive shaft, in penn fishing reels, is called a gear sleeve.  to increase the functional drag range of these reels, i recommended greasing the drag washers and installing a stainless steel gear sleeve.  the stainless steel will hold up to pressures of 12 pounds (maybe a little more), meaning that you used up to 40# mono and a 30% drag setting.  for the squidder gear sleeve, you will be replacing part #98-155.  for the jigmaster 500/501, the long beach series, the senator 111, 112, 112h, and 113, 113h, the mariner 49/149, you will be replacing part #98-60.  in the jigmaster 505/506 and SOME of the jigmaster 500/501's, you will be replacing a fine thread gear sleeve that has a part # of 98-505.  the coarse thread gear sleeve uses a #10-60 or 10-66 star, the fine thread gear sleeve uses a #10-505 star.  check the number stamped on your star first.

when ordering let me know if you want a #98-60 coarse stainless, a #98-505 fine stainless, or a #98-155 coarse stainless.  they are $20 each, shipping included.   send a check to alan tani, 12362 ted court, saratoga, ca 95070 and i'll ship out them out.

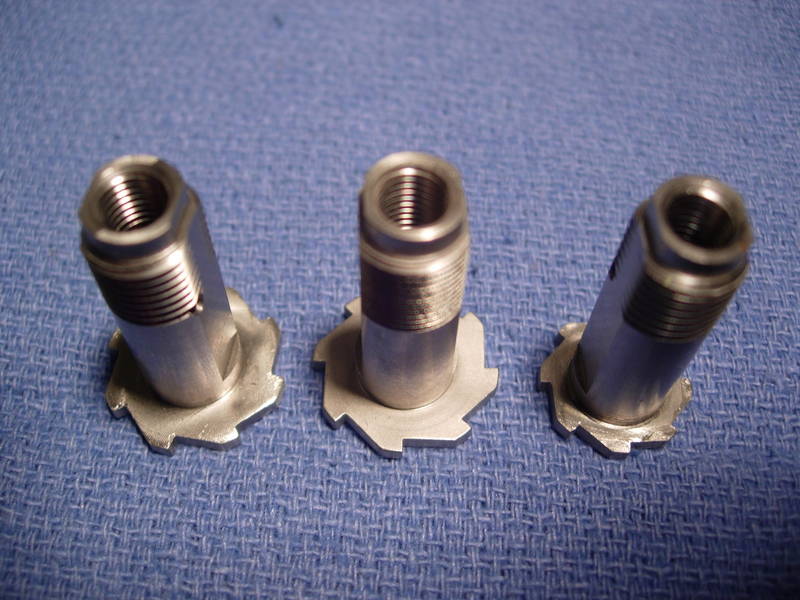

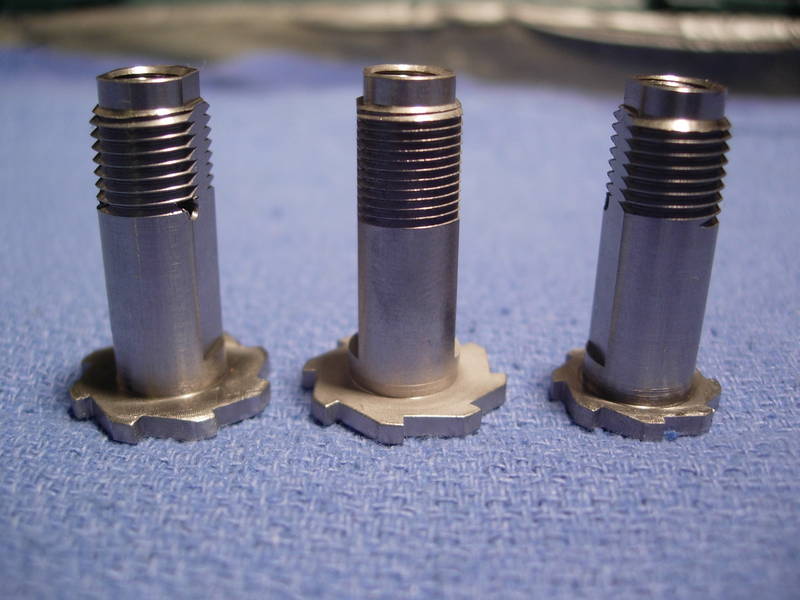

here are the brass gear sleeves

« Last Edit: December 15, 2010, 10:34:24 PM by alantani » Logged

send me an email at alantani@yahoo.com for questions!
alantani
admin
Administrator
Member
****
Online Online

Posts: 17656



« Reply #1 on: December 22, 2008, 10:39:36 AM »

yeeeesssshhhhhh!!!!!!!!!!!!  i just found out last night that the hole for the retaining pin on the squidder gear sleeves and the coarse thread jigmaster gear sleeves were drilled too high.  the whole batch needs to be redrilled.  i think i gotten ahold of everyone except mike m.  mike, can you give me a call?  thanks!  alan
Logged

send me an email at alantani@yahoo.com for questions!
alantani
admin
Administrator
Member
****
Online Online

Posts: 17656



« Reply #2 on: May 08, 2009, 09:02:30 AM »

Quote


Good Morning.  Alan.  The people at PennParts suggested I contact you.  I use my Penn 114h's for grouper digging with a lot of drag.  The top of the gear sleeves are rounding.  I've been reading and talking to friends and they say to replace with a stainless sleeve.
I'm having a difficult time finding the part in stainless.  Any suggestions would be greatly appreciated.  Thank You


i called electramate and they were closed today.  here's a link http://www.elec-tra-mate.com/index.html   they should carry this part.  my machinist has been asking about making one, but i have not seen the need yet.  it would cost me about $3000 for a minimum order of 100 pieces.  that's why i've balked so far.  please let me know.  thanks!  alan
Logged

send me an email at alantani@yahoo.com for questions!
alantani
admin
Administrator
Member
****
Online Online

Posts: 17656



« Reply #3 on: May 11, 2009, 08:12:15 AM »

Quote

On a whim I contacted our local commercial supply house and they carry the
sleeve in stainless.
Following is there contact info if you are interested.

Fisherman's Ideal Supply House
http://www.fishermansidealsupply.com/recreationaltackle/
750 Welch Causeway East
St. Petersburg,  FL  33708
727-391-7380
Call: 1-800-780-7380

Thanks again!


i just spoke to them and they confirm that they have ten at a $19.95 price.  i called back to verify the price because normally they go for $35.  um, i also ordered three to keep in inventory, so i guess they have seven now.........
« Last Edit: May 11, 2009, 08:51:34 AM by alantani » Logged

send me an email at alantani@yahoo.com for questions!
alantani
admin
Administrator
Member
****
Online Online

Posts: 17656



« Reply #4 on: May 11, 2009, 08:59:03 AM »

i called electramate and they verify that they also carry one.  it's $25.
Logged

send me an email at alantani@yahoo.com for questions!
alantani
admin
Administrator
Member
****
Online Online

Posts: 17656



« Reply #5 on: November 25, 2009, 07:40:12 AM »

Quote


hi i got that part today this morning i put it on had a hard time trying to get the pin in i got in in by a little force but would not spin and inspected the part it would not work so i put the original back on maybe this part is only for the older penn jigmasters mine is new penn jigmaster 500L or maybe there was a defect with the gear sleeve itself email me back or call me let me know if you ran in to this problem before i mailed the part back today



i think i found the problem.  the slot for the retaining pin in the old bridge posts were ground down pretty deep.  i think that the new ones from china are not.  i'm going to have to do some looking, but i think that the stainless steel gear sleeves will not fit the chinese versions of these reels.  this could really be a mess!  stand by......
Logged

send me an email at alantani@yahoo.com for questions!
doryscott
Member
*
Offline Offline

Posts: 1


« Reply #6 on: April 05, 2011, 07:11:07 PM »

Alan,

Will the gear sleeve 98-60 for the Penn 111 fit the Penn 1/0 110

i'd like to order one

Scott
Logged
Bryan Young
Ultimate Upgrades Drags
Administrator
Member
*****
Online Online

Posts: 10242


The Reel Whisperer


« Reply #7 on: April 05, 2011, 07:28:41 PM »

Yes it will.  Send a PM to Alan and a check per the instructions in the first thread.
Logged

Cheesy I talk with every part I send out and each reel I repair so that they perform at the top of their game. Cheesy
j12
Member
*
Offline Offline

Posts: 6


« Reply #8 on: April 14, 2011, 12:08:39 AM »

Just wondering if the issue with the pin hole being too low for newer jigmasters has been resolved. If it has been, I will be ordering the s/s bearing sleeve Smiley
Logged
alantani
admin
Administrator
Member
****
Online Online

Posts: 17656



« Reply #9 on: April 14, 2011, 07:12:20 AM »

pennparts.com has the correct ones.  i have all the ones that were cut too deep.  i use them on reels that come across this bench, or reels that in can verify are older US-made reels.
Logged

send me an email at alantani@yahoo.com for questions!
j12
Member
*
Offline Offline

Posts: 6


« Reply #10 on: April 14, 2011, 07:44:32 AM »

I see. Thanks for the info Alan.
Logged
Gman_WC
Location
Member
*
Offline Offline

Posts: 345



« Reply #11 on: May 28, 2011, 08:41:49 AM »

So will replacing the gear sleeve part #98-60 work on the 113hs as well?
I assuming that there is no thin or thick threads to match up as on the Jigmaster.
-g
Logged

Walnut Creek, CA
Norcal Pescador
Redding, CA
Member
*
Offline Offline

Posts: 1517



« Reply #12 on: May 28, 2011, 09:54:15 AM »

Gary,
The 113H uses the 98-320 gear sleeve [a little bigger than the 98-60]. The stainless one from PennParts is the 98-320AT.
Rob
Logged

Rob

Measure once, cut twice. Or is it the other way around? Roll Eyes

"A good man knows his limits." - Inspector Harry Callahan, SFPD
redsetta
Moderator
Member
****
Offline Offline

Posts: 2725


Auckland, New Zealand


« Reply #13 on: May 29, 2011, 06:14:21 PM »

Just wanted to pass on my thanks and appreciation for the fine S/S gear sleeves (1 x Jigmaster 500 and 1 x 113H).
They've worked a treat and are beautifully made.
Had to tap a new thread in the 500 star (mistakenly ordered the coarse thread and didn't have a 10-66 star), so I'm hoping the new thread holds. Will have to keep an eye out for a 10-60 or 66, I s'pose.
Great product, great service - thanks again Alan.
All the best,
Justin (New Zealand)
Logged

Fortitudine vincimus - By endurance we conquer
Ward
Member
*
Offline Offline

Posts: 9


« Reply #14 on: July 05, 2011, 11:19:33 AM »

Let me add another thanks for gear sleeves from Alan.  They are beautiful.  Tonight will be devoted to upgrading a couple reels and prepping the boat for the first salmon trip tomorrow.  Thanks!
