113HLW 3D Model

[ZaneG]

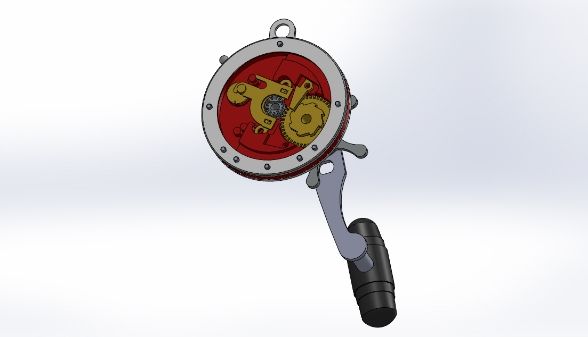

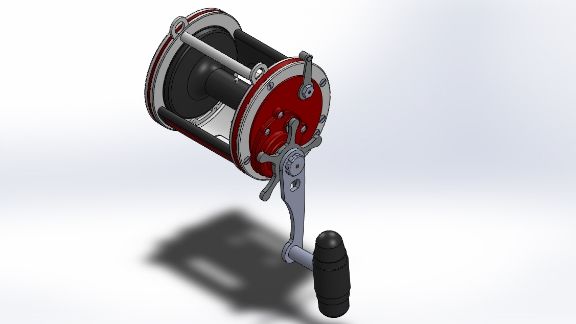

Just thought I would share a 3D model of my 113HLW I am working on. Its not 100% I still have some hardware and a few springs to add plus some of the alignent could be fine tuned.

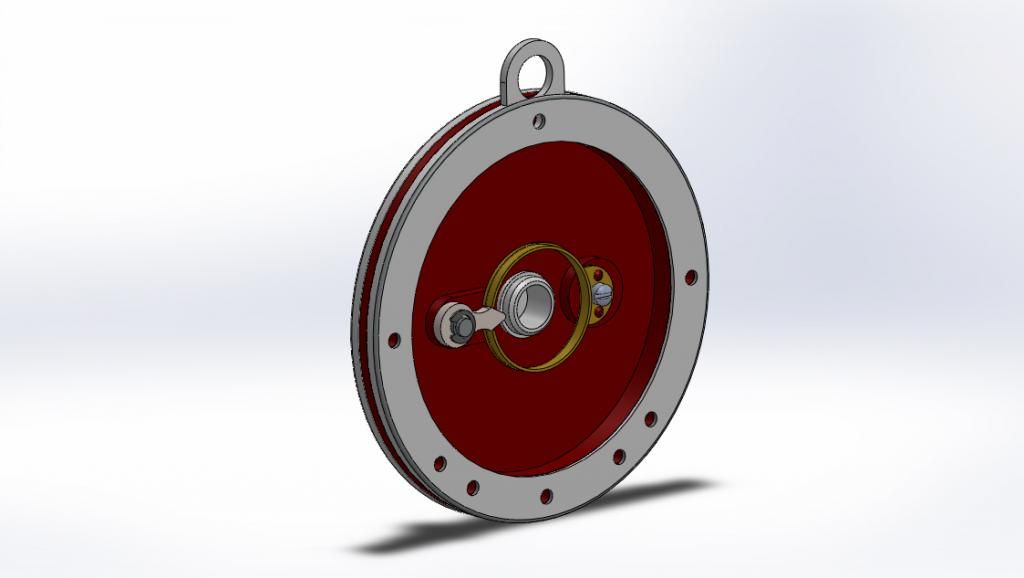

I suppressed a couple of components to give a better view

[Bill B]

wow,,,will you be able to print or machine from these images?

[ZaneG]

Sure the model was done in Solidworks which can be used or converted to be used by many machines or 3D printers.

[ZaneG]

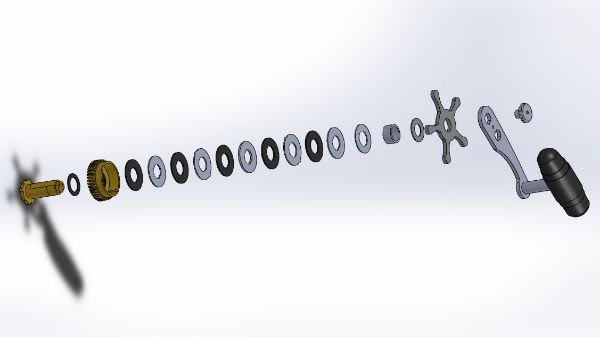

Thought I would add the drag stack

[Bryan Young]

That's cool.  I hope I can learn to do that one of these days.

[broadway]

Zane,
    Wow, that's very detailed. Looks like it'd be a difficult process until ya get the hang of it.
Amazing what computers can do.
Nice job... look forward to seeing the completed project.
Thanks
Dom

[ZaneG]

Trying to get a Tiburon or Accu frame to go on the reel so I can add to the model....and of course the future stainless bridge w/ double dogs.

Once I get a frame I am planning on using it to scale up for a frame for a 116. I am friends with some pretty crafty machinists they promised that if I develop the drawings they will figue out the most effective way to make a frame without comprising on the strength. Lets see what they come up with...but need a 113hlw frame fiirst.
