Upgrading a Jigmaster 506

[Alto Mare]

I got this nice reel for a very good price, so I decided to upgrade it

the seller mentioned that the reel was in excellent shape and he was right

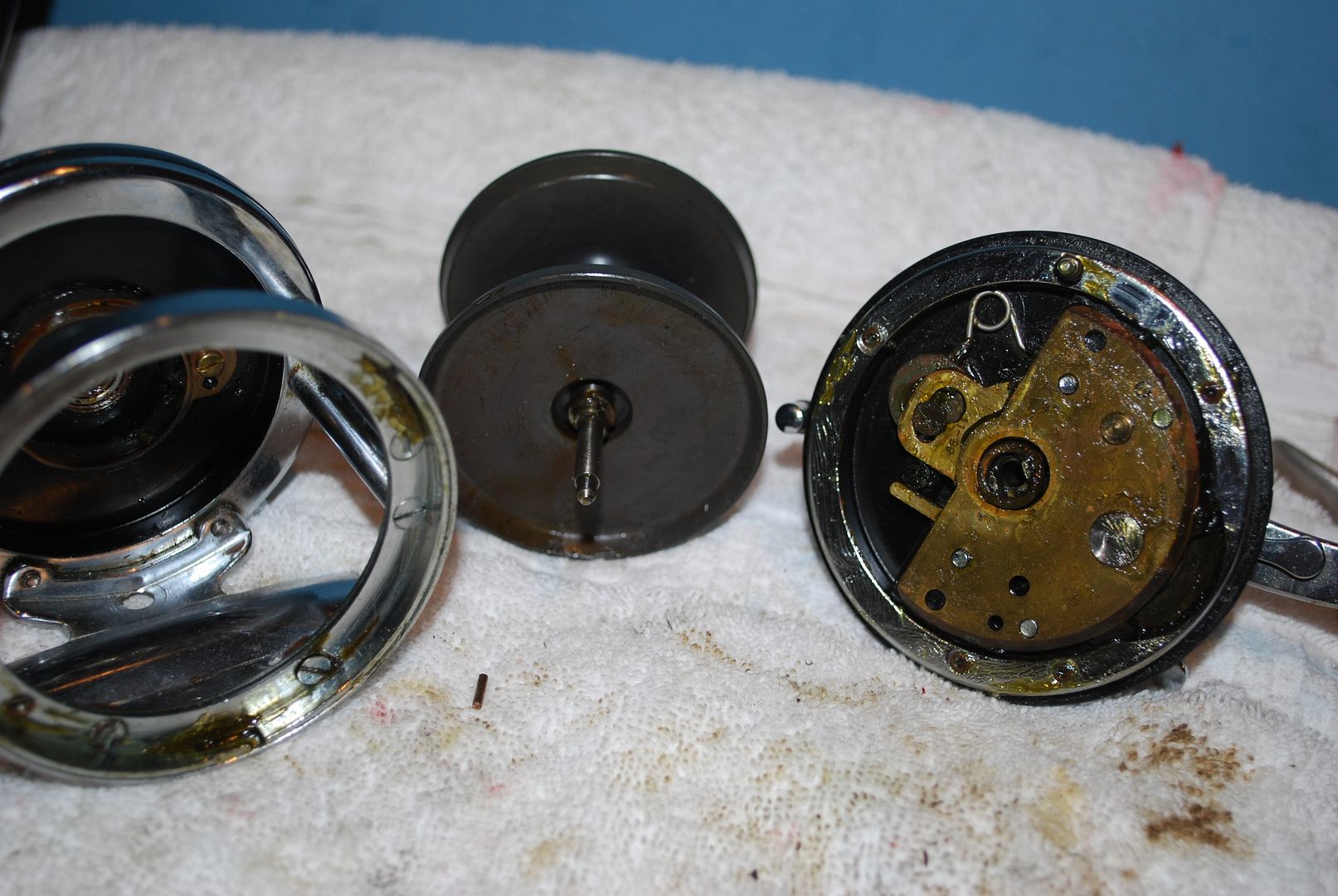

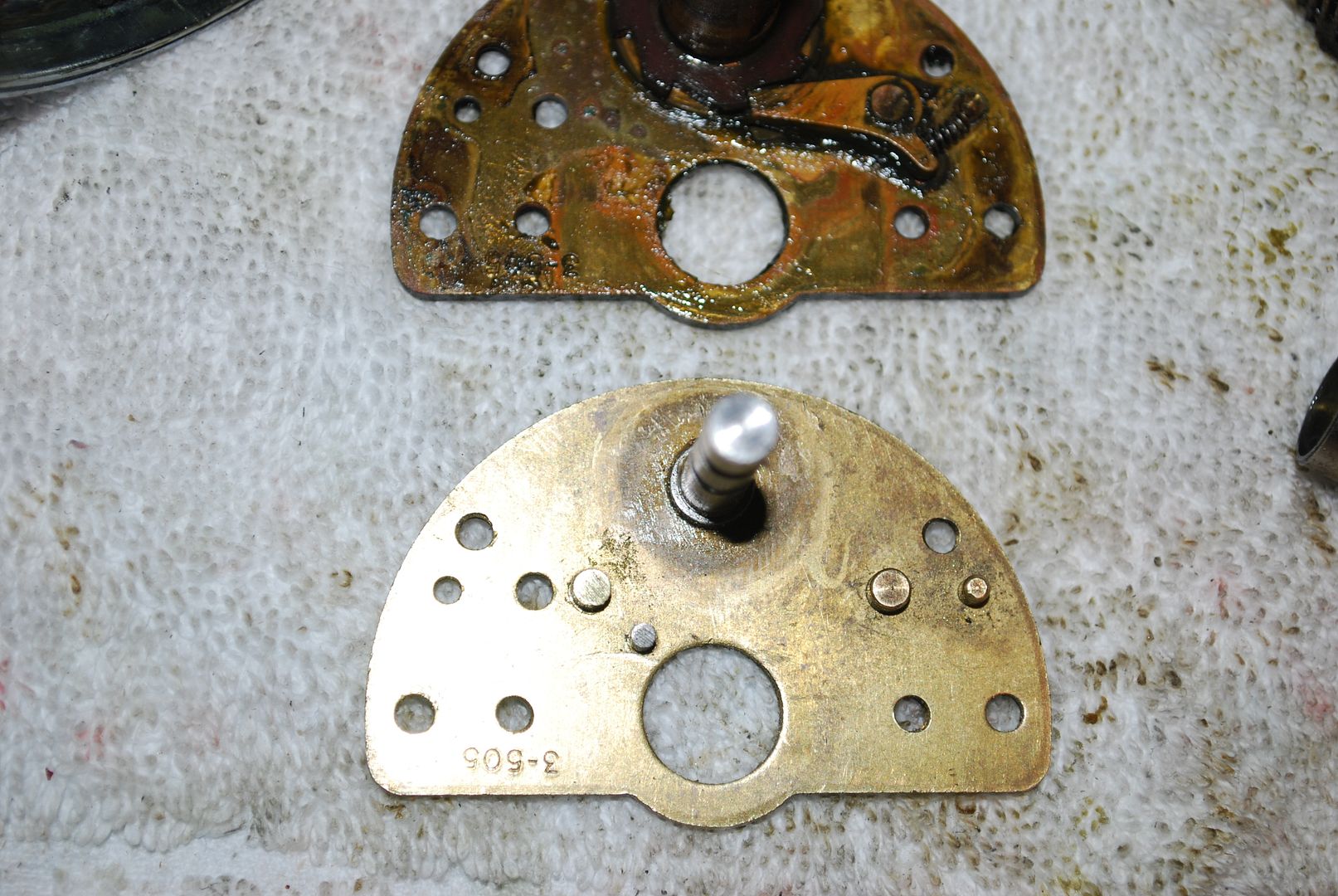

the inner parts were loaded with grease, that stuff was so nasty, the brass changed color

decided to go with the double dogs on this one

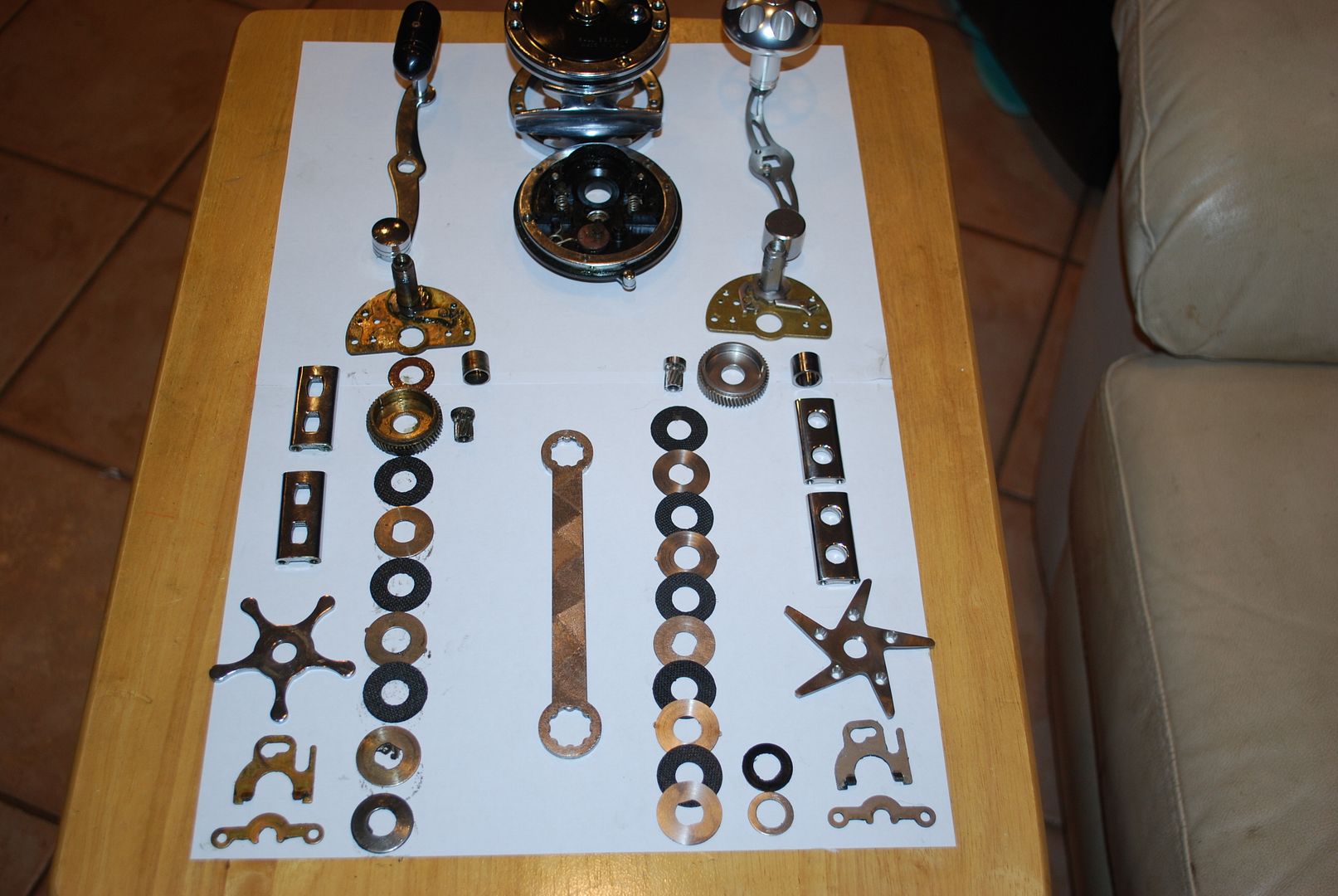

parts for the upgrade are on the right

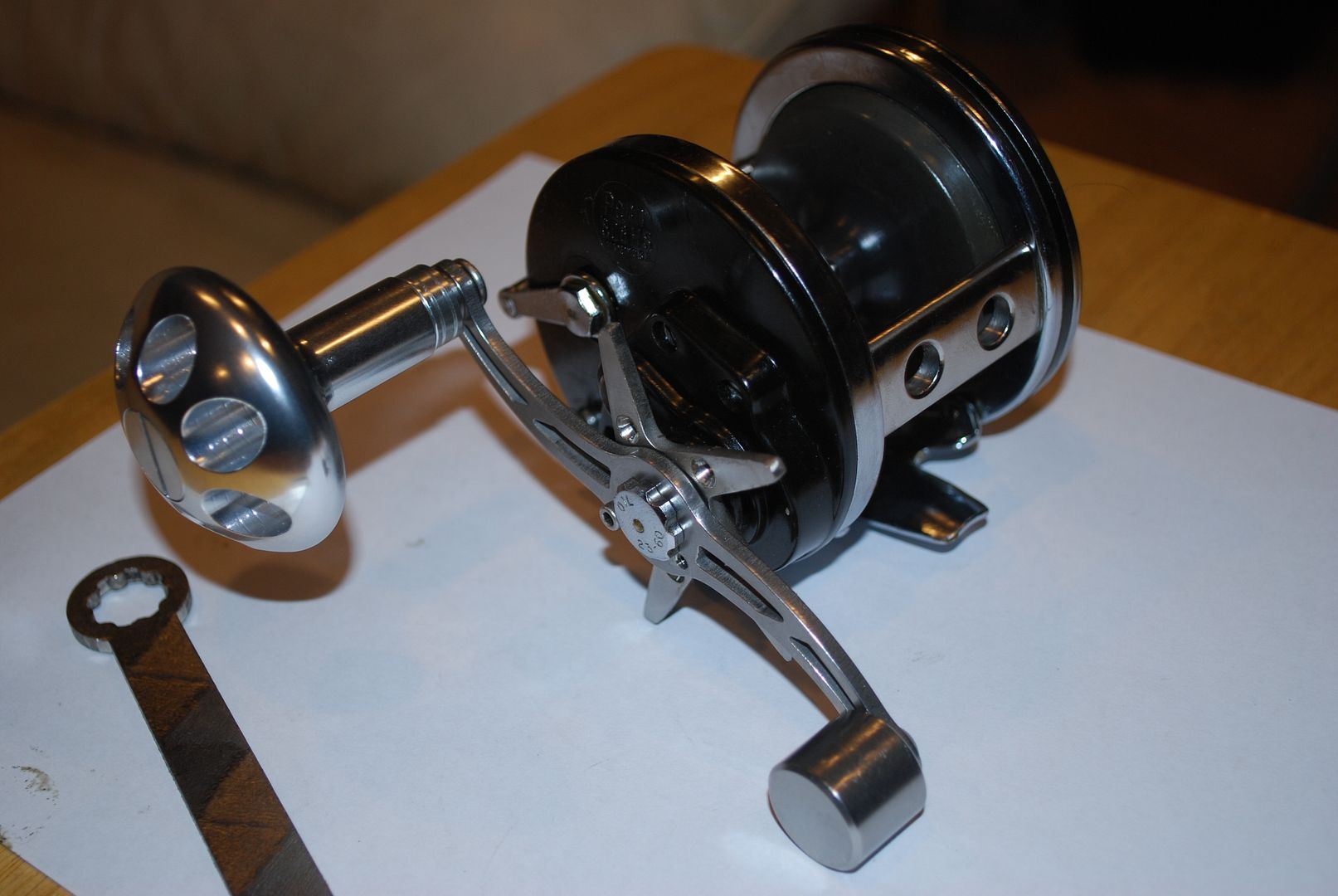

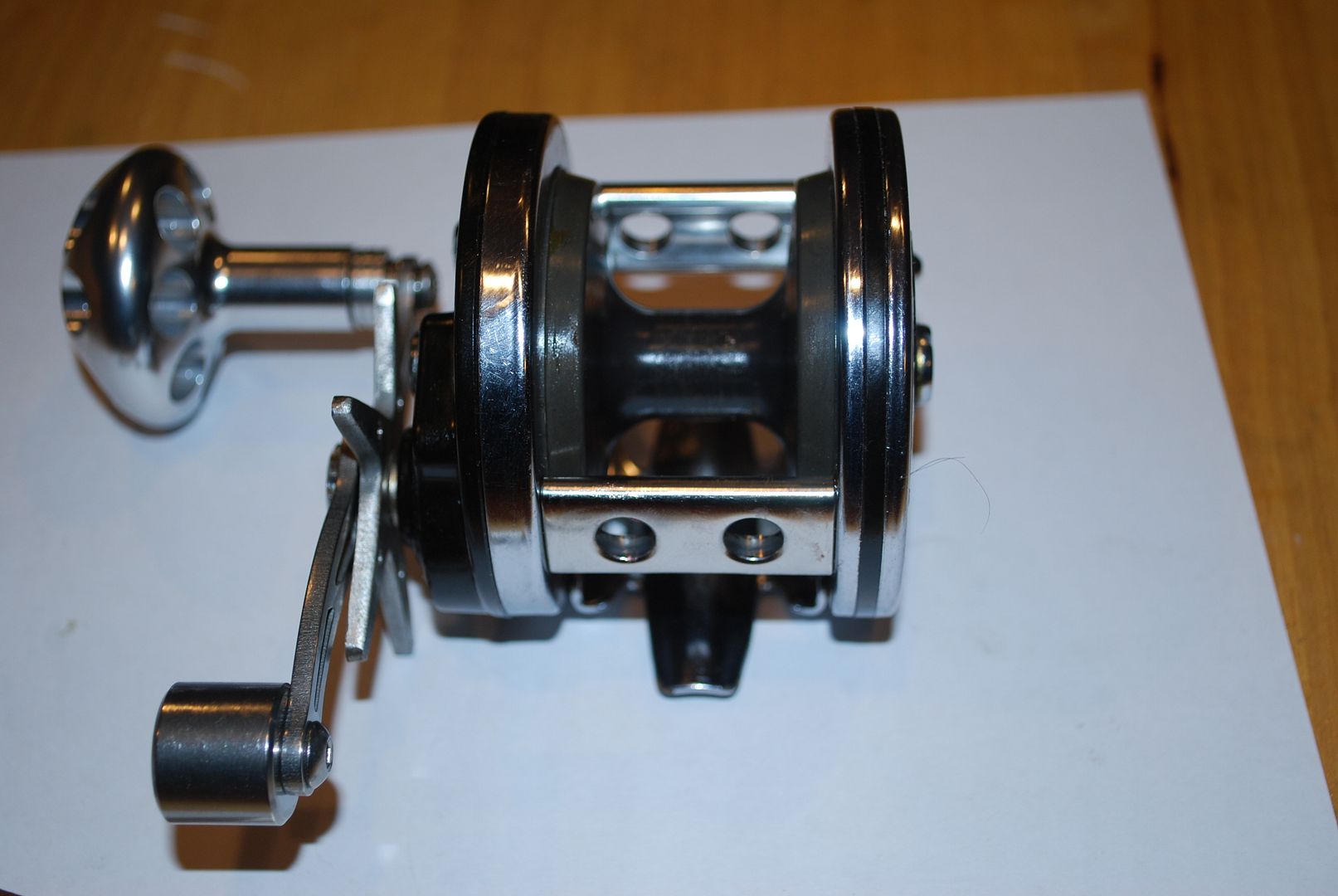

and here is the finished reel



This is a nice one and works great!

Sal

[thorhammer]

Sal, that's sweet right there. You are a machine; didn't you just "upgrade" the Mag 10 yesterday? Where does one get the six-shooter knob?

John

[foakes]

Nice job, Sal --

Those 506s are a terriffic reel.

With your focused upgrades -- it is now bulletproof.

Best,

Fred

[ReelCurious]

I thought the double dog SS bridge didn't fit with the 505/506 reels because of the bearing spacing?

[Alto Mare]

Thanks guys!

Sal, that's sweet right there. You are a machine; didn't you just "upgrade" the Mag 10 yesterday? Where does one get the six-shooter knob?

John

John, things have been a little quiet around here, as for tutorials and upgrades, I thought I make some noise
Here is the list for the parts used, just in case someone else has a question about them:

SS dogs, handle knob, SS  heat treated 5:1 gears, heat treated gear sleeve, SS jack and yoke and SS spacer bars, all from Pro Challenger (Black Pearl )

SS star was a gift from Dave (Jurelometer )...holes drilled by me

SS Handle from Motive Fabrication (Three se7ens)

Drag kit from Bryan Young

Washers for under the gear and on top made by me from McMaster-Carr's sheets

and that's about it.

I thought the double dog SS bridge didn't fit with the 505/506 reels because of the bearing spacing?

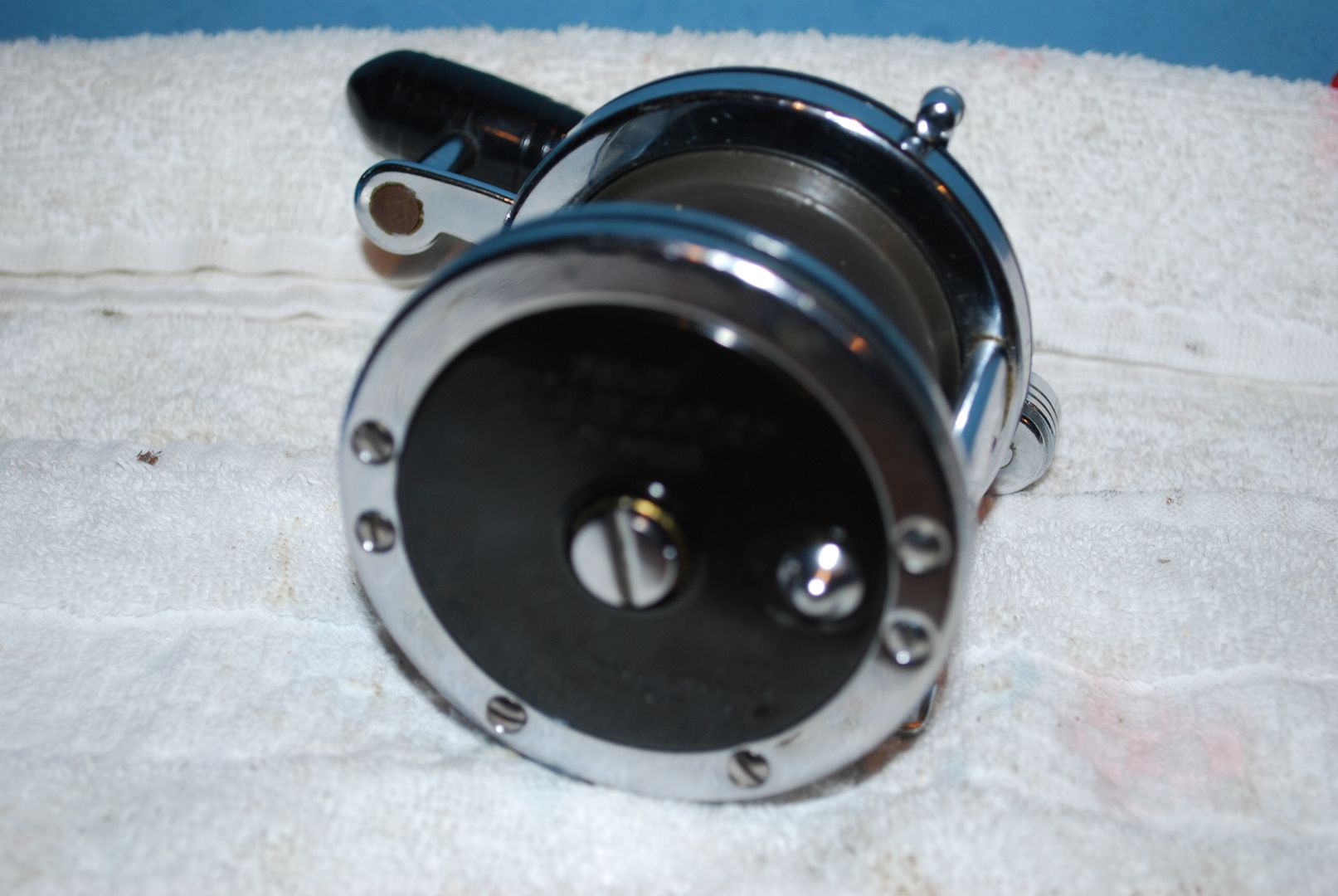

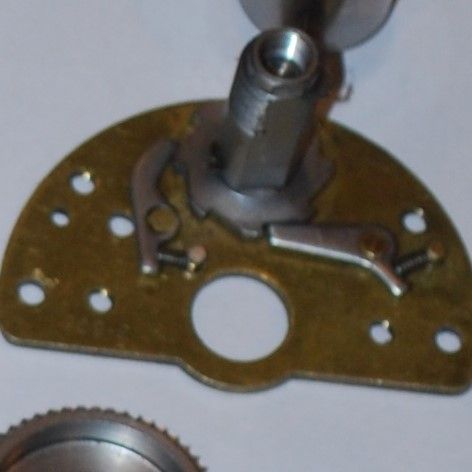

On the fourth picture you will notice the bridge is stock from Penn, I installed the pins for the extra dog and spring.

Sal
