A tool for removing the Drag Cover used in various Shimano Stella reels?

Started by Jon_Kol, March 09, 2016, 11:14:03 AM

Previous topic - Next topic

0 Members and 1 Guest are viewing this topic.

Jon_Kol

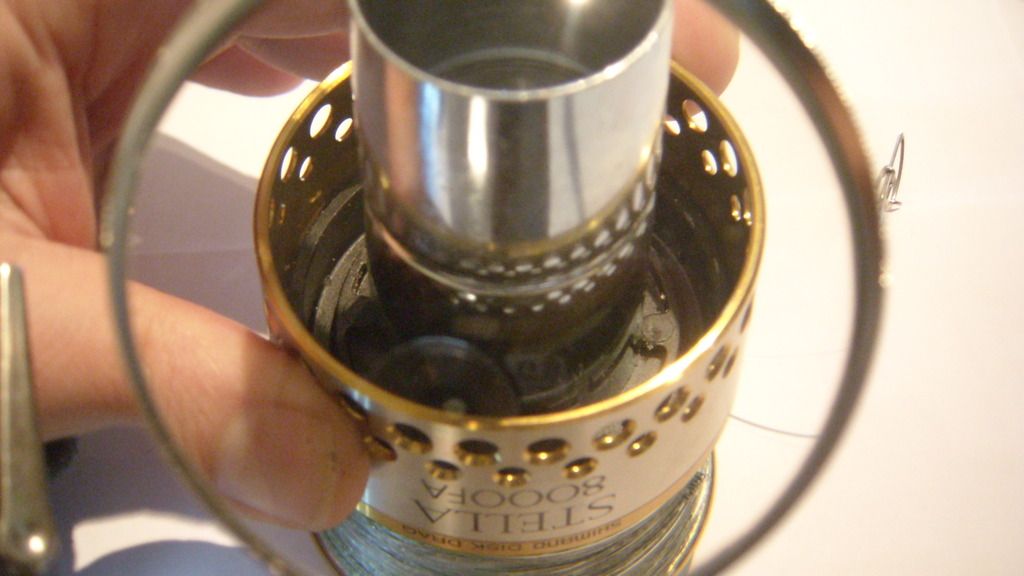

Does anyone know if there's a special tool that is meant to be used for removing the Drag Cover on the spool of various Shimano Stella models? I don't own a Stella myself, but I've been reluctant to removing this part since I haven't been able to remove it using my hands, and various tools that "kinda fit" is not something that I will apply to reels sent to me for service.

I tried Google to see if I could find more info, but I didn't find any tool for the job.

Any ideas? Thanks!

Tiddlerbasher

I have only worked on one, some time ago, can't remember the model. I made a 'Tool' out of aluminium but stiff plastic would probably do it.
Have a look at:
http://alantani.com/index.php?topic=8915.0

webwalker

Hi all,
Again with this trouble. I have a few set made by myself but ... Is there a place who sold "standard" wrech for this work?  ???




Bill B

It may not be very productive,
but it's sure going to be interesting!

Cadman

Quote from: webwalker on February 16, 2017, 09:07:14 AM
Hi all,
Again with this trouble. I have a few set made by myself but ... Is there a place who sold "standard" wrech for this work?  ???





What did you use to make the tool?

ReelClean

Specialist Daiwa reel service, including Magseal, MQ series body plates, and every other "improvement" that Daiwa Marketing (sorry... I meant Engineering) Dept comes up with!

Bill B

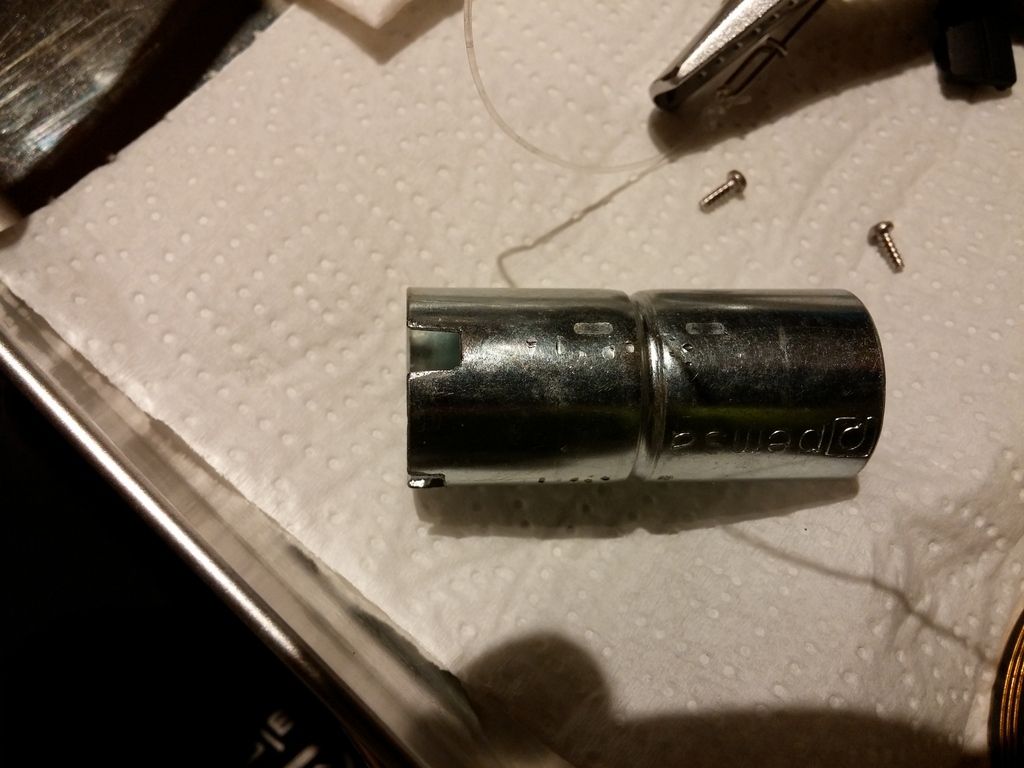

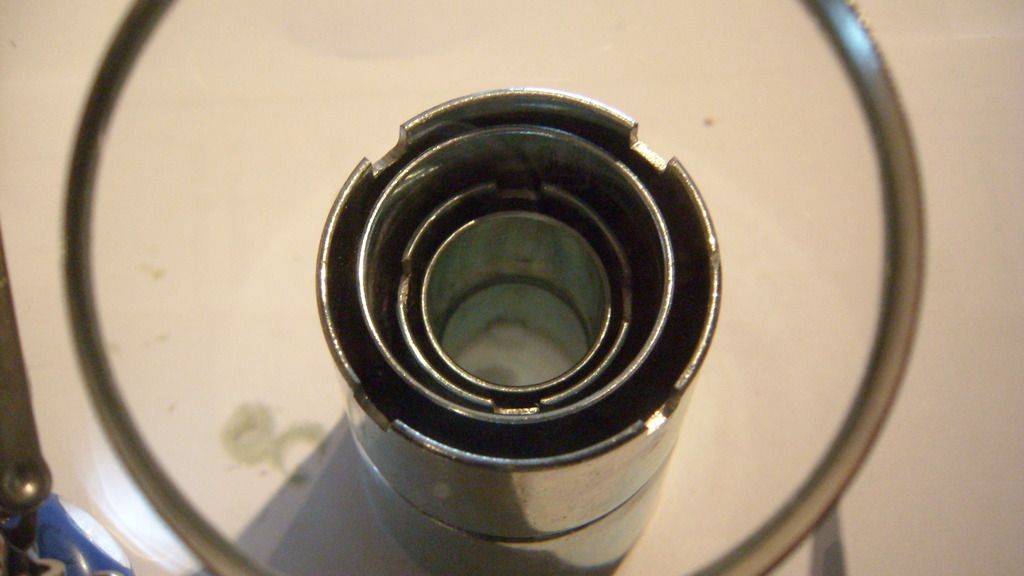

They look like conduit connectors...there should be a hole not shown for a set screw....Bill
It may not be very productive,
but it's sure going to be interesting!

Cadman

Quote from: TARFU on March 08, 2017, 01:18:21 AM
They look like conduit connectors...there should be a hole not shown for a set screw....Bill

I thought the same thing a electrical conduit connector. What is the hole with the set screw for and where does it go? If you don't mind me asking a dumb question. Thank You.

Bill B

No worries, when the conduit is inserted into the coupler, the set screw is tightened perpendicular to the conduit to secure it in the coupler...Bill
It may not be very productive,
but it's sure going to be interesting!

ReelClean

Quote from: TARFU on March 08, 2017, 01:18:21 AM
They look like conduit connectors...there should be a hole not shown for a set screw....Bill

Ah yes, I can see that now, thanks!
Specialist Daiwa reel service, including Magseal, MQ series body plates, and every other "improvement" that Daiwa Marketing (sorry... I meant Engineering) Dept comes up with!

Cadman

Quote from: TARFU on March 08, 2017, 08:47:38 PM
No worries, when the conduit is inserted into the coupler, the set screw is tightened perpendicular to the conduit to secure it in the coupler...Bill

Thank You for the explanation.

webwalker

Hi all,
Yes to all posts, all are correct. With the help of a dremel ...
Nobody knows if is there a standard tool for this works?
By the way ... a good and economic mini bearing packer ?
Regards

Tiddlerbasher

Send a message to Alan Tani - he sells the best bearing packer available in metric and imperial sizes ;)
